POWER Wallbox Connect

POWER Wallbox Connect

Compact design with maximum efficiency.

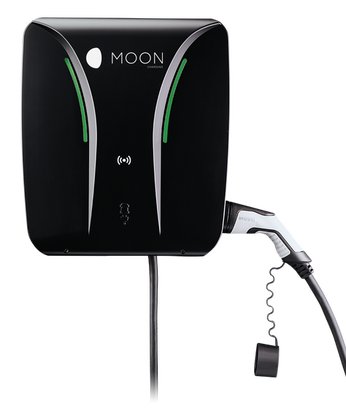

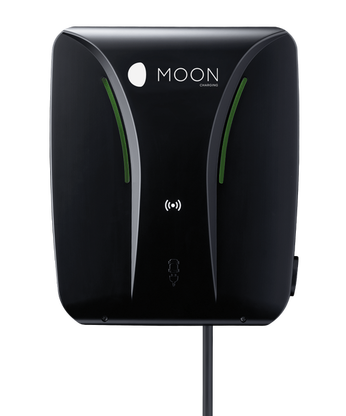

The sleek and compact Wallbox POWER Connect empowers you, your customers, or employees to charge electric cars swiftly and securely. In its standard configuration, it supports charging at 1x 22 kW. Additionally, an optional variant with two connections is available, facilitating simultaneous charging of two electric cars, each at 22 kW.

Price on request
Contact our expert

Simple Charging Solutions

Convenient, fast and safe charging.

Compact Design. Configuration variants.

The POWER Connect stands out with its compact design and high-quality craftsmanship. Additionally, it offers versatility with four configurable variants, allowing it to seamlessly adapt to your specific requirements.

Flexible Variable Billing. Charging Profiles.

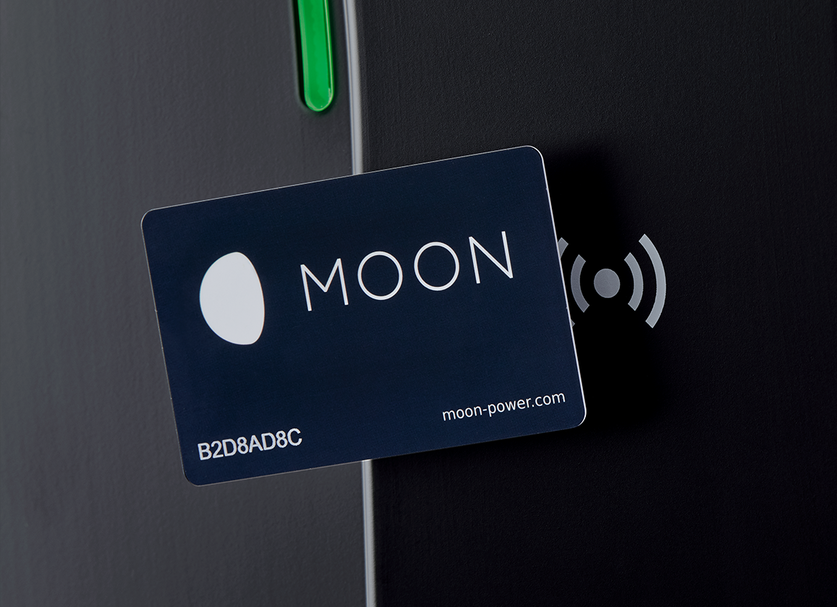

The Wallbox POWER Connect boasts higher charging power, intuitive operation, simple authentication, and an expandable billing system, making it universally applicable. Whether you prefer authorized charging via RFID card or internet integration to manage charging processes, the Wallbox Connect offers the perfect solution for your needs.

Overview Fast and safe charging. Simple operation.

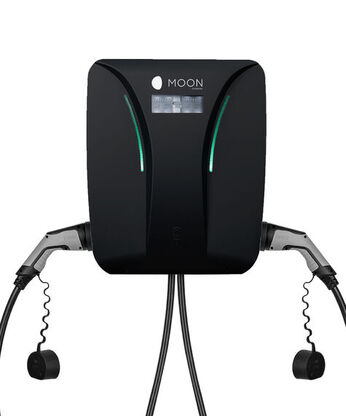

With a charging power of up to 2x 22 kW, the wallbox also offers the possibility to charge two electric cars simultaneously, providing flexibility and efficiency for multi-vehicle households or commercial settings.

Safety. Warranty service.

For the POWER Wallbox Connect, MOON provides a 36-month warranty from the date of purchase, ensuring peace of mind and long-term reliability for your charging solution investment.

Safe & Fast Charging

High safety

The IP54 degree of protection (protection against contact, protection against dust and against water spray penetration) and the IK08 level of protection (shock resistance) ensure safe charging.

Real-time evaluations

See evaluations of consumption, charging time and costs at any time on the online portal. This gives you full transparency and ensures ongoing reporting.

Encrypted data

All loading process data is transmitted securely through an encrypted protocol.

Technical data
Nominal Current
up to 32 amp
Configurable Connection
3-phase or 1-phase
Protection Class
IEC 61508
Output Voltage
230/400 V AC
Intelligence
PV- or smart grid control
RFID card reader
Integrated (Mifare Ultralight and Mifare Desfire)
Dimensions
W x H x D: 39.7 x 49.7 x 16.6 cm (with mounting frame)
Product Documentation
MOON Connect Datasheet
Download
