MOON Pro-line Single or Double

MOON Pro-line Single or Double

A versatile solution suitable for both personal and public use.

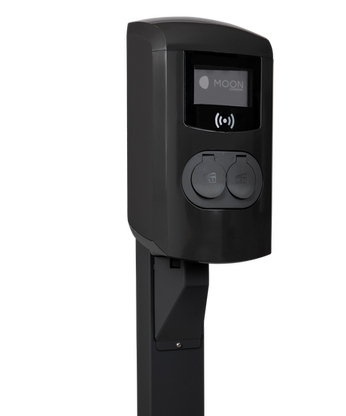

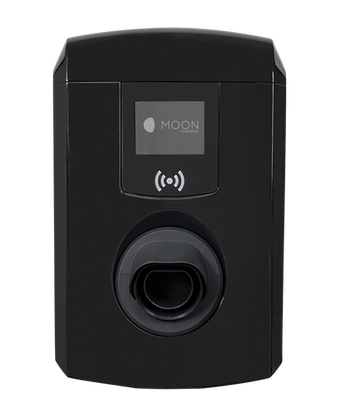

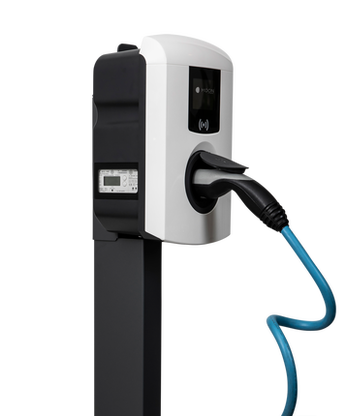

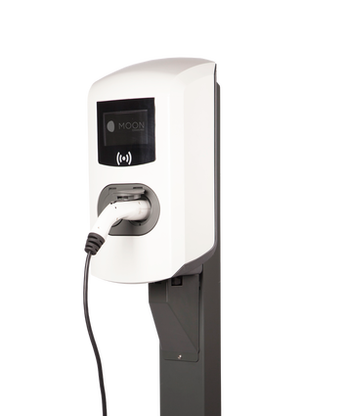

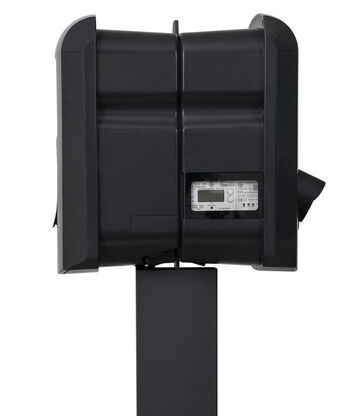

Our intelligent charging stations are designed to meet your needs with precision and reliability. Choose between the Single Pro-line, equipped with one socket, or the Double Pro-line, featuring two sockets, ideal for both semi-public and public locations. Compliant with German calibration law requirements, you can trust in the accuracy and legality of your charging sessions.

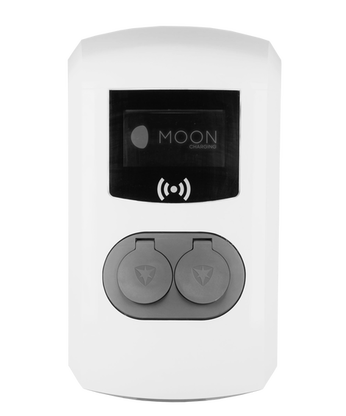

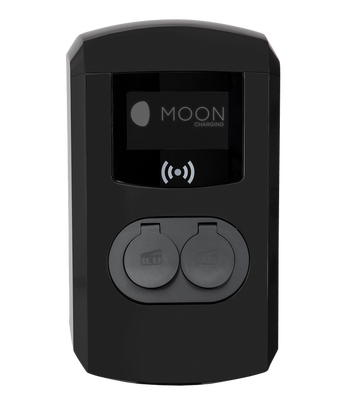

MOON Pro-line is available in two different colors: gray (color code: RAL7043) and white (color code: RAL 9016). Shown images are only symbol images. The color may vary.

Price on request

The natural evolution of charge management.

MOON POWER offers corporate customers individual solutions for their entry into e-mobility.

Processing Large display Intelligent charging.

With the large graphic display, showing all the necessary information such as energy supplied, charging speed and duration, the user interface, and an highly reliable hardware platform, the MOON Pro-line is very user-friendly while offering modern functionalities for smart charging.

Safety Safety is everything. Universally usable.

During development, particular focus was placed on reliability, user-friendliness, maximum end-user safety, as well as ease of installation and maintenance.

Power Up to 44 kW charging power. Up to two vehicles.

The MOON Pro-line can be configured with either one (Single) or two connections (Double) of 22 kW each, making it possible to charge up to two vehicles at 22 kW each.

Security. Warranty service.

For the POWER Wallbox Connect, MOON provides a 36-month warranty from the date of purchase, ensuring peace of mind and long-term reliability for your charging solution investment.

Safe & Fast Charging

Charge safely

The IP54 degree of protection (protection against contact, protection against dust and against water spray penetration) and the IK08 level of protection (shock resistance) ensure safe charging.

Save electricity

The integrated LCD display provides information about the charging process and energy consumption at all times.

Charging processes.

The charging station records charging processes. Additionally available: The online charging portal gives you an overview and control over all charging processes.

Technical Data
Electrical characteristics
Please refer to the product datasheet.
Single: L x W x H: 37 cm x 24 cm x 13 cm; Double: L x W x H: 59 cm x 33.8 cm x 23 cm
Ambient temperature
-25°C to +40°C
Sheet steel, powder coated, lockable
Dynamic charging power control
Product Documentation
MOON Pro-Line Datasheet
