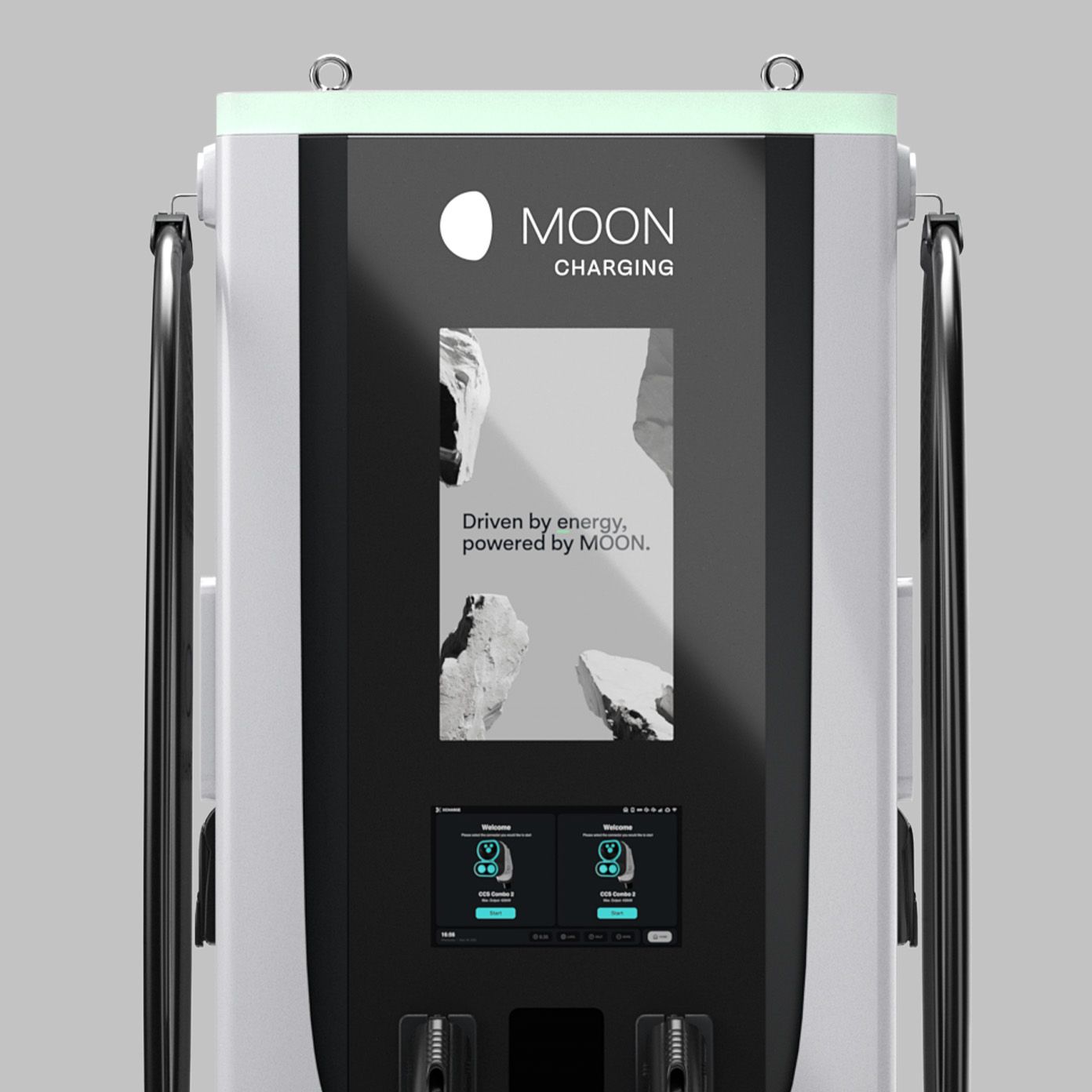

MOON POWER Charger C7
The MOON POWER Charger C7 – our advanced charging solution with a very good price-performance ratio.
Price on request
Powerful and convenient charging. The C7 fast charger with up to 400 kW impresses with its modern design, intuitive operation, branding and advertising options, smoke detector, door contact and efficient cable management and cooling – as standard equipment. For high utilisation at charging hubs as well as for bus and truck charging.
Charging at the same time

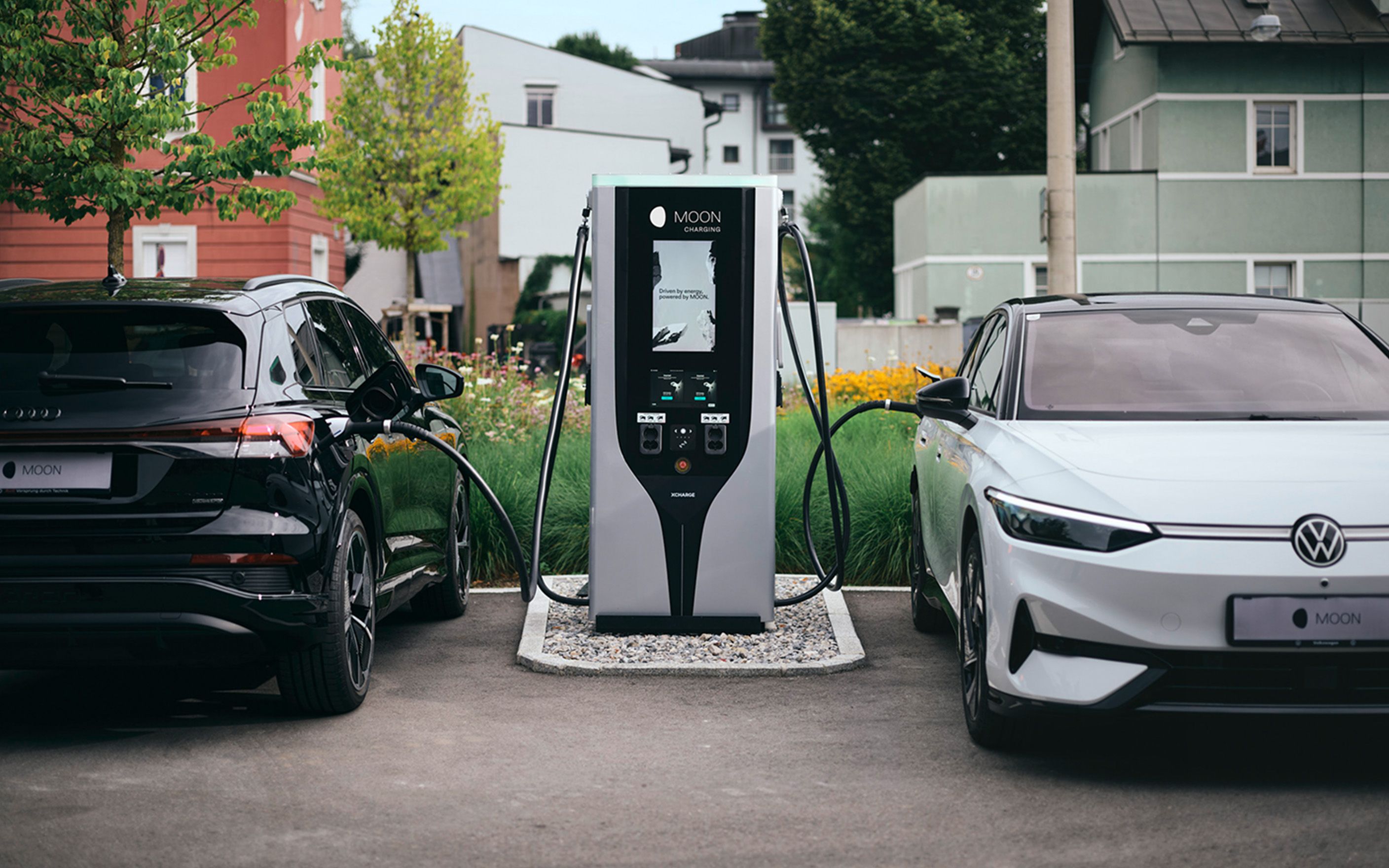

With the C7, two electric vehicles can be charged at the same time – safely and tidily thanks to cable management.
Powerful
Fast charging: Depending on the vehicle type, the full charging power of 160 to max. 400 kW can be utilized.
Warranty
Our fast chargers have a standard warranty of 24 months.
Quiet
The noise emission of the C7 is < 70 dB in normal operation (at a distance of 1 m). Silent mode possible.
The MOON POWER Charger C7 impresses with a very good price-performance ratio with extensive standard equipment.
Plug & Charge, Charging for tomorrow
Plug & Charge makes charging electric vehicles extremely easy. Standardised and certified communication between the vehicle and the charging station enables automatic identification and authentication, without the need for a charging card. An optimal solution, effortless and safe.
Simple
Cards or apps are superfluous. Just connect the charging cable to the vehicle and charge.
Fast
Less waiting time for charging creates more space and time for mobility.
Secure
Advanced encryption ensures secure data protection.
ISO 15 118
Automatic and secure authentication thanks to the modern ISO 15 118 protocol.

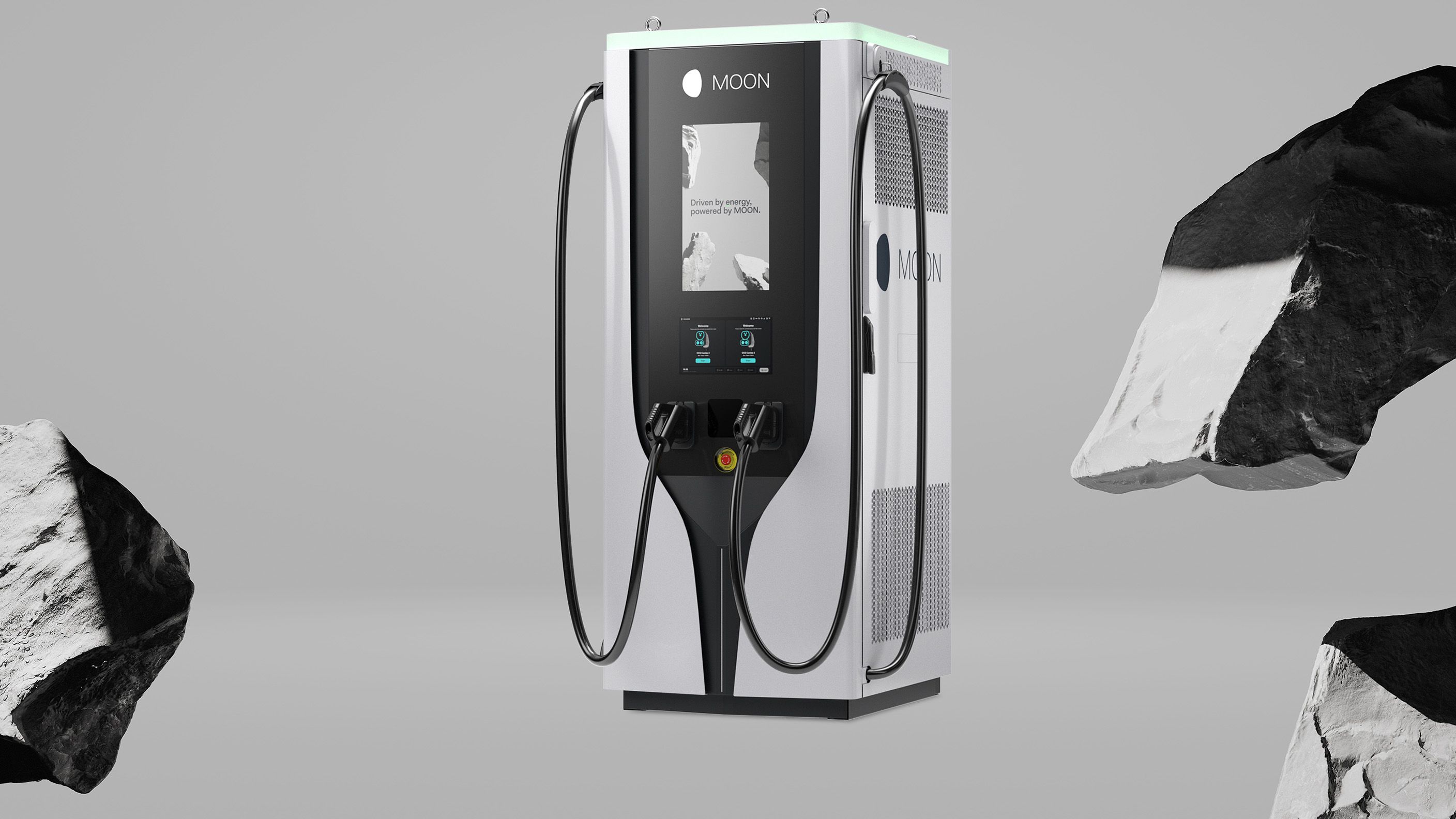

MOON POWER Charger C7
Efficient performance and equipment at a convincing price.
Personalized advertising
With a large advertising screen for strong brand communication.
Plug & Charge
Plug & Charge is the opposite of cumbersome charging. Simple and clear.
B-MoRe
Uncomplicated billing of charging processes, transparent monitoring and reporting– our practical charging point management system lives up to its name: B-MoRe.
Technical & Mechanical Data
Charging power
400 kW
Dimensions in mm
800 x 900 x 1992 mm
Protection
IP54 and IK10
Assembly
Outdoor area
Ambient temperature
-35°C to +50°C
Communication
OCPP 1.6J/ OCPP 2.0.1 Modbus TCP Client
Downloads
FAQs
The C7 fast charger combines a modern design, intuitive operation and a charging power of up to 400 kW. The attractive price, the wide range of branding options and standard features such as an advertising screen, smoke detector, door contact, emergency stop and efficient cable management including cooling are particularly noteworthy.
The noise emission of the C7 is minimal in normal operation and is < 70 dB (at a distance of 1m). A special feature is the controllability through a preset silent mode, which is sent from the backend or the web UI.
Yes, the charging station is designed for continuous operation under full load, provided that the outdoor conditions and the connected vehicle allow it.
Yes, basically all backends based on OCPP 1.6 or 2.0.1 are supported. Please clarify in advance with your backend provider whether an integration between the charging station manufacturer XCharge and the backend has already taken place. We recommend our backend B-MoRe, in which we have already integrated over 4,000 charging points.
The C7 supports parallel charging at up to two charging points. How the charging power is distributed between the two charging points depends on the chosen charging strategy.
- First-in, first-out (FIFO): The vehicle connected first receives the maximum available power. The excess energy is passed on to the second vehicle.
- Fair Share: The charging power of the charging station is distributed as fairly as possible, taking into account the charging needs of the vehicles.
Yes, the C7 has been specially designed for outdoor use. It offers protection according to IP 54, is IK10 certified and is designed for the usual operating temperatures of -35 °C to +50 °C.
