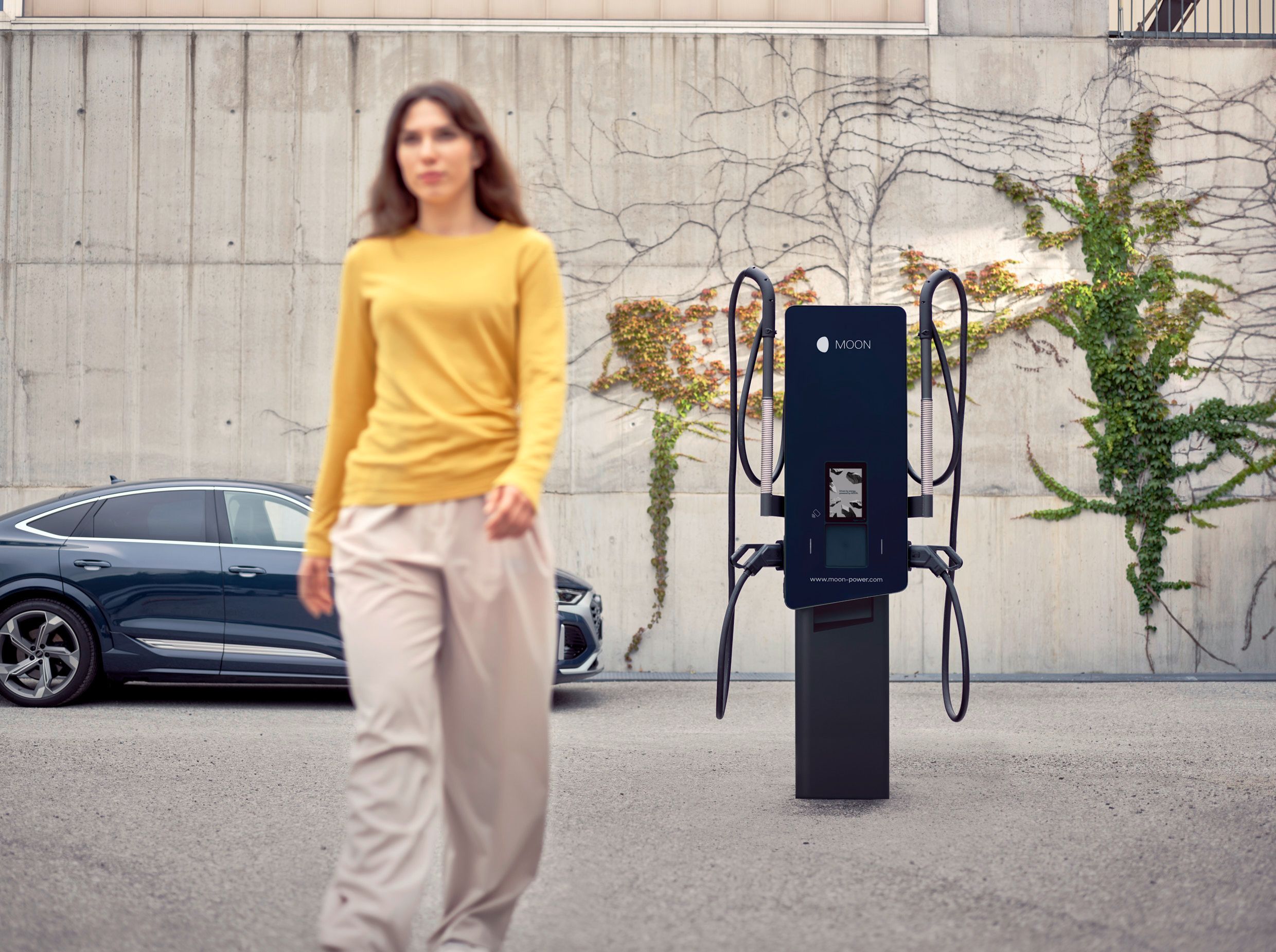

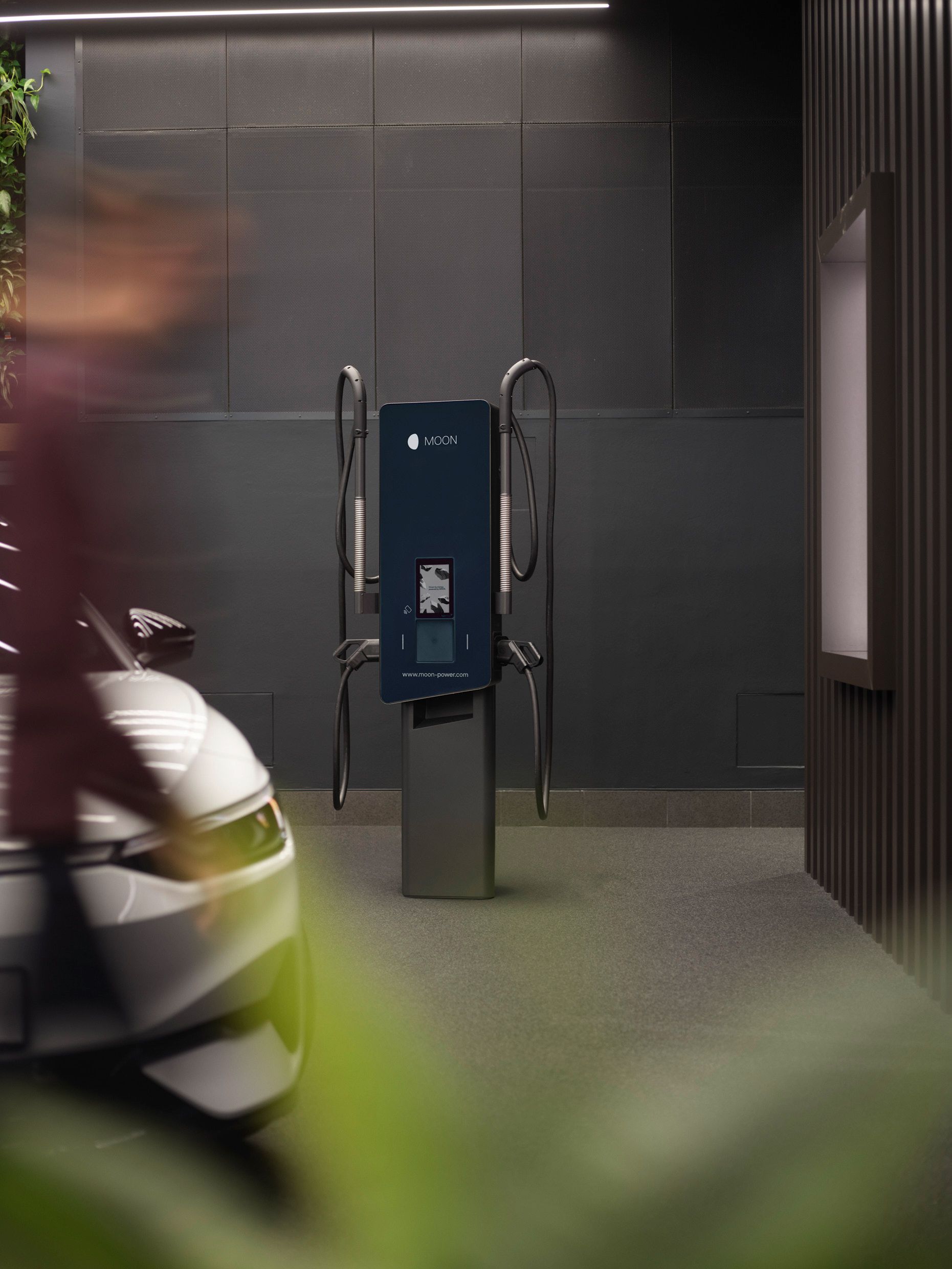

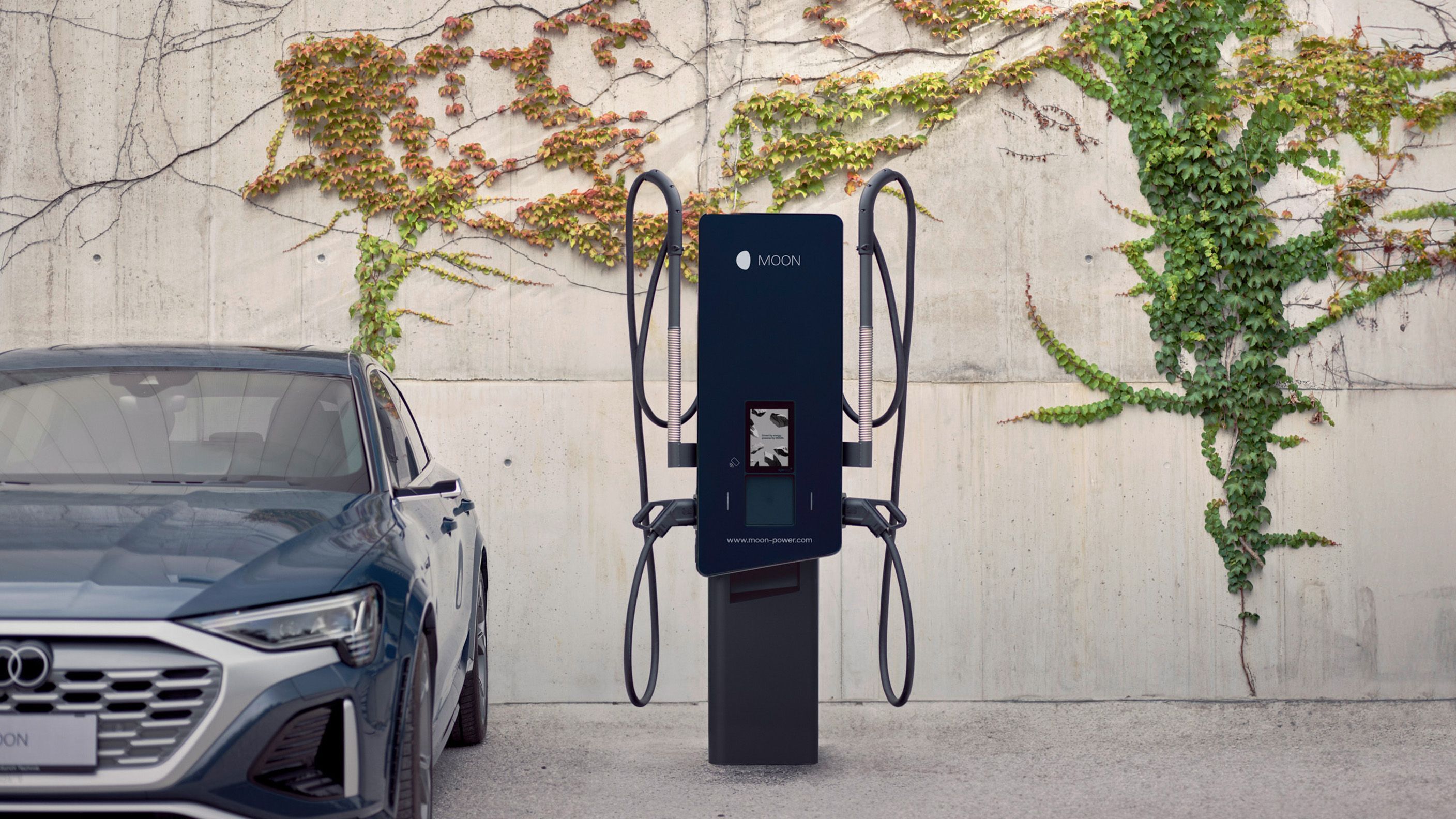

MOON POWER Charger HYC 50
Innovative and compact wallbox for fast charging of one vehicle with up to 50 kW or two with 25 kW each.
Price on request
The innovative and adaptable wallbox. With the highly efficient power of up to 50 kW and variable placement options, the MOON POWER Charger HYC 50 is a compact charging solution that will remain compatible with future developments. An optimal choice for smaller businesses and public charging.
Charging at the same time
At the MOON POWER Charger HYC 50, one vehicle with 50 kW or two vehicles (2x 25 kW) can be charged simultaneously.
Most powerful wallbox
Depending on the vehicle type, the efficient charging power of up to 50 kW is available.
Warranty
Our MOON POWER chargers have a 36-month warranty. This can be extended to up to ten years.
Very quiet
Thanks to efficient power electronics and a sophisticated cooling concept, this is one of the quietest wallboxes on the market.
Barrier-free access is also important for charging stations. The MOON POWER Charger HYC 50 meets the DIN 18040-3 standards.
Plug & Charge, Easy and direct charging
Plug & Charge makes charging electric vehicles extremely easy. Standardised and certified communication between vehicle and charging station enables automatic identification and authentication, without the need for a charging card. A harmonious and safe solution.
Simple
Cards or apps are superfluous. Just connect the charging cable to the vehicle and charge.
Fast
Less waiting time for charging creates more space and time for mobility.
Secure
Advanced encryption ensures secure data protection.
ISO 15 118
Automatic and secure authentication thanks to the modern ISO 15 118 protocol.

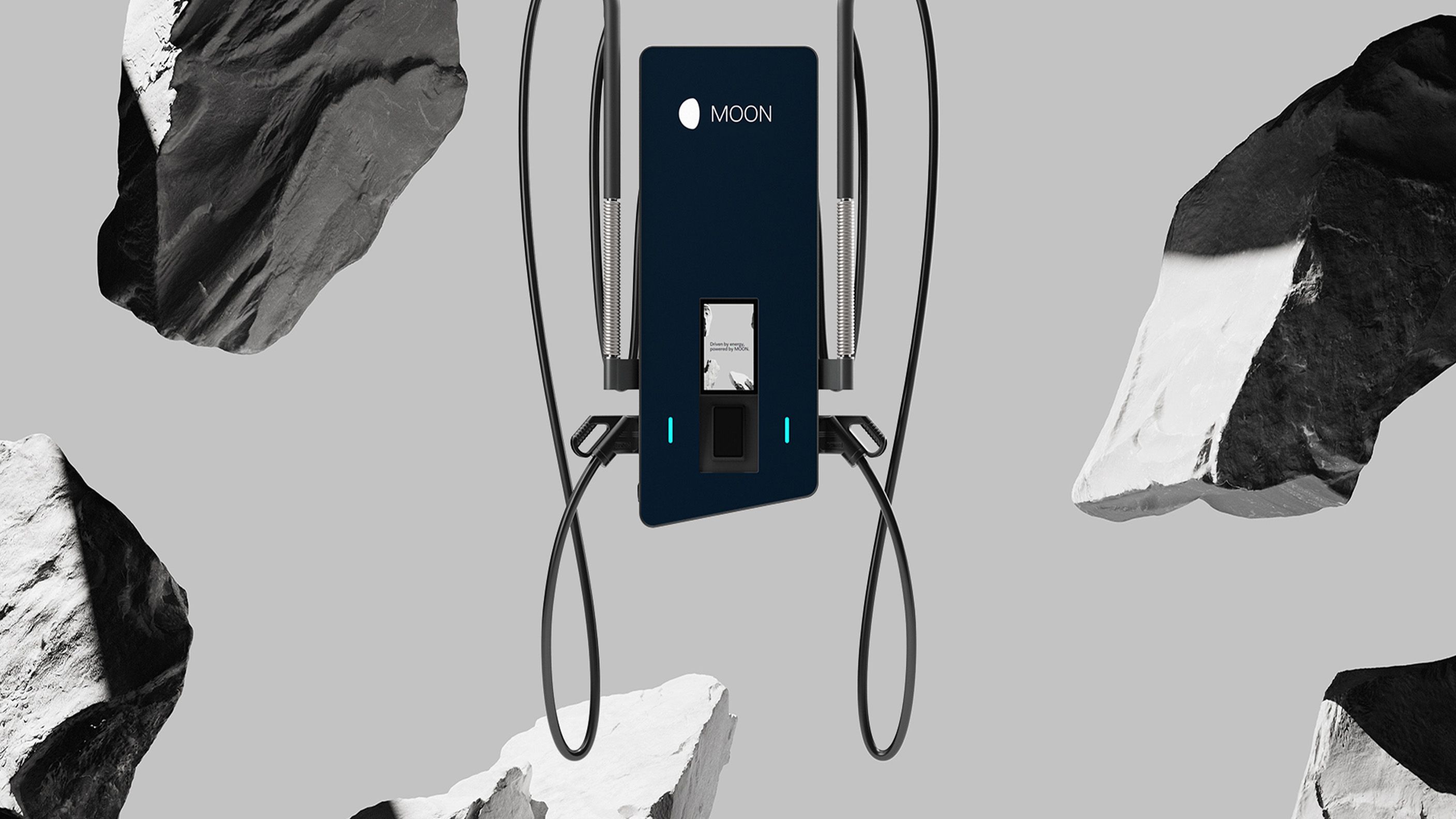

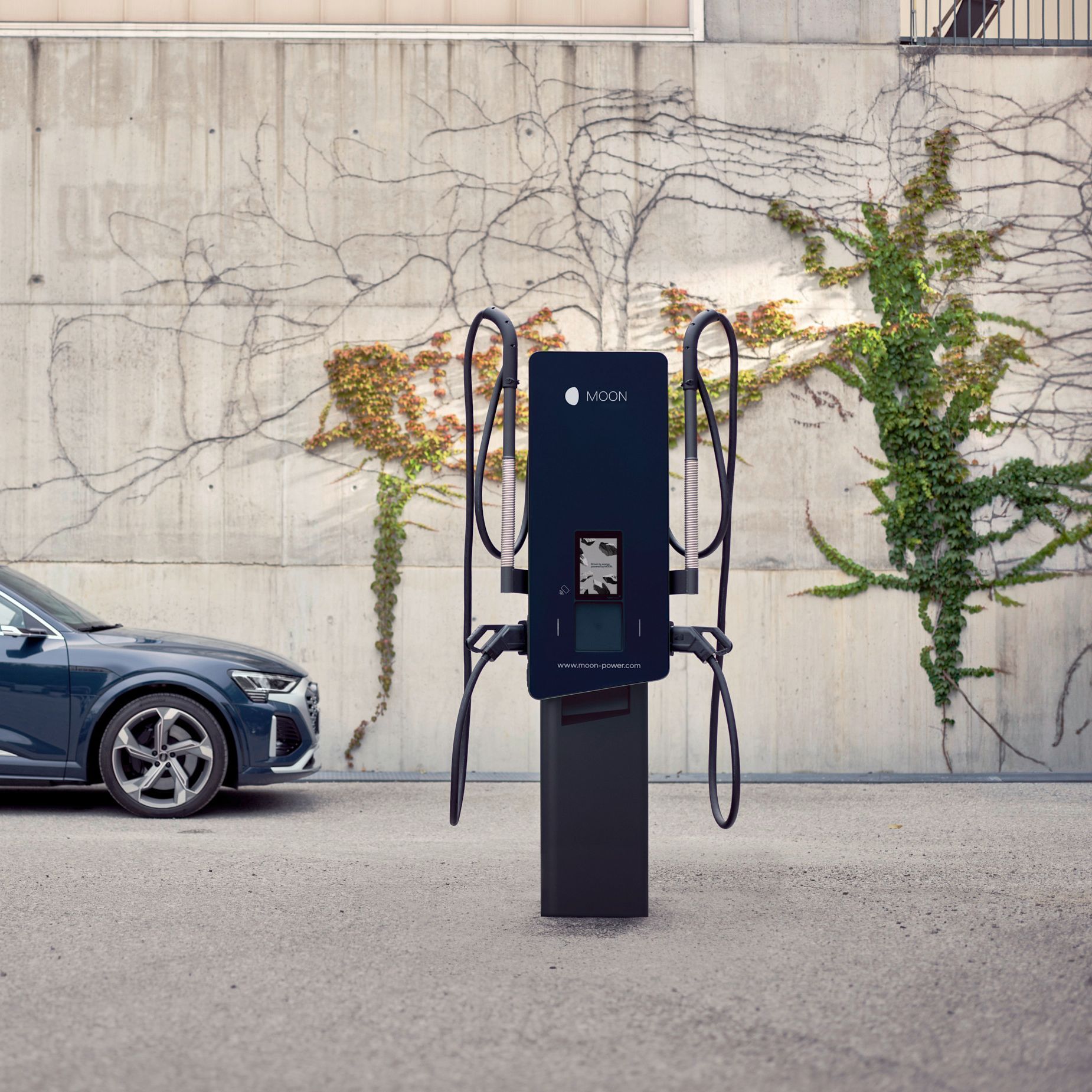

MOON POWER Charger HYC 50
The efficient and convertible wallbox solution in a high-quality design. Compact and powerful.
Personalized branding
The high-quality acrylic glass front can be individually printed and thus adapted to your company design.
Cable Regulations
The cable management ensures easy handling and extends the life of the cables.
B-MoRe
Uncomplicated billing of charging processes, transparent monitoring and reporting– our practical charging point management system lives up to its name: B-MoRe.
Technical & Mechanical Data
Charging power
50 kW / 2 x 25 kW
Dimensions in mm
1300 x 520 x 250 mm
Protection
IP55 and IK10
Assembly
Interior & Exterior
Ambient temperature
-30°C to +55°C (derating from 40°C)
Communication
OCPP 1.6 JSON
- Different cable lengths
- Different plug types
- Individual branding ex-factory
Downloads
FAQs
The vast majority of wallboxes available on the market have a maximum charging power of 22 kW. The MOON POWER Charger HYC 50, on the other hand, is significantly more powerful with up to 50 kW, i.e. a high-performance wallbox. It also enables parallel operation for simultaneous charging of two vehicles with 25 kW each.
Thanks to the efficient power electronics and a sophisticated cooling concept, the MOON POWER Charger HYC 50 is one of the quietest devices on the market. At a distance of 3 m, the noise emission is only 50 dB. Other devices are twice as loud.
Basically, the power electronics can call up the full power of up to 50 kW on a permanent basis. Performance reductions are usually due to the vehicle. With an output of 50 kW, no liquid-cooled charging cables are required.
The MOON POWER Charger is compatible with most common EMS systems thanks to its Modbus TCP interface. In addition, as a market-leading system in the field of DC charging solutions, it is preconfigured as standard and fully integrated into numerous load management systems.
The MOON POWER Charger HYC 50 can be connected to any common backend based on OCPP 1.6 or 2.0. We recommend our backend B-MoRe, in which we have already integrated over 4,000 charging points.
The MOON POWER Charger HYC 50 can charge up to two vehicles at the same time, each with 25 kW.
The charger is designed for outdoor installation. It has an IP factor of 54 and can easily be installed at an altitude of up to 4,000 m above sea level. Mechanically, it is IK10 protected against impact. In addition, it is designed for all common operating temperatures from -30°C to +55°C.
