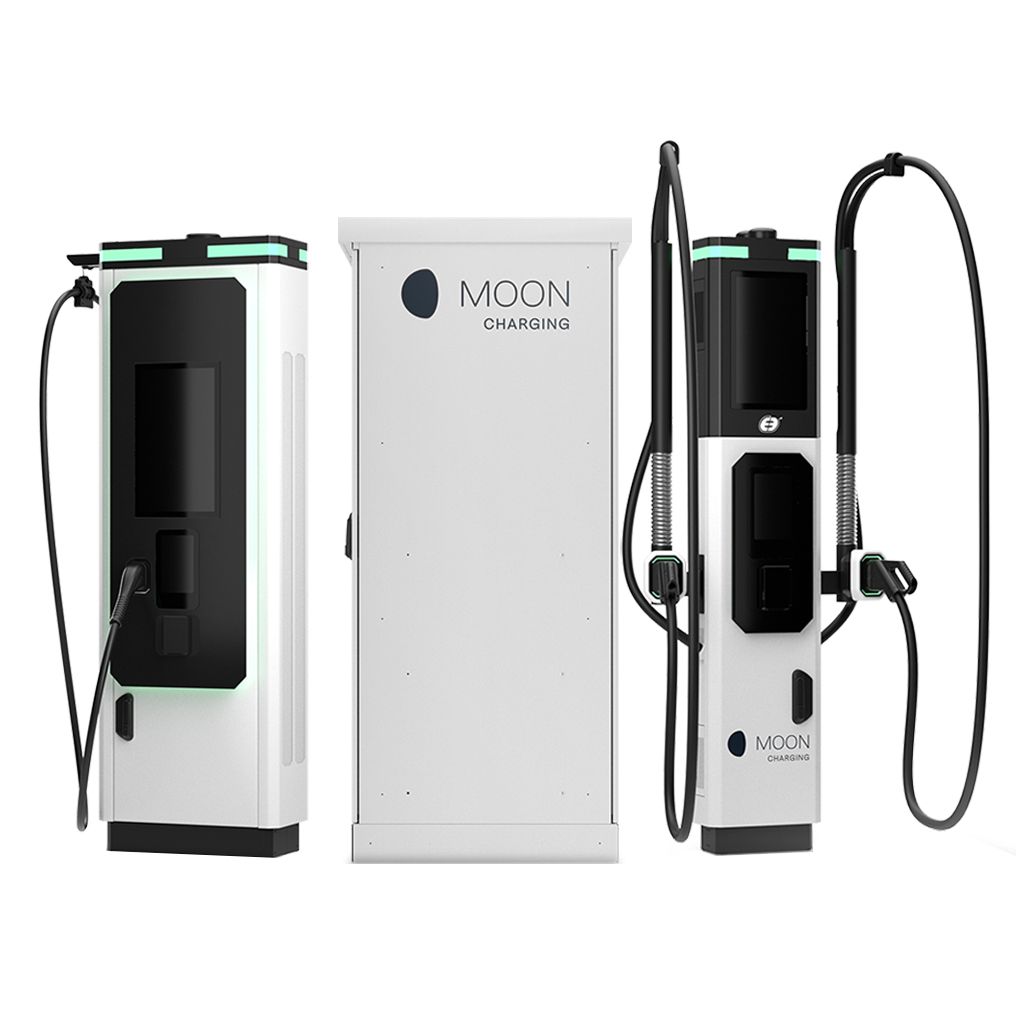

POWER Charger SAT 400-600
Maximum scalable high-performance charging station. The MOON POWER Charger SAT series enables ultra-fast charging with space-saving installation at the same time. The power solution for public sites, logistics and fleet operations.
- customizable through modular scalability
- compliant & certified billing
- ideal for space-saving, flexible use of space
Price on request
24 months warranty
Fast delivery
Personal advice
Variable configuration
The charging stations and power unit are separate and can therefore be set up flexibly depending on the location. The charging points can be connected in clusters. Individuals can be prioritized via internal energy management.
Incredibly adaptable
The high-performance charging system is very scalable and perfect for ultra-fast charging and different types of vehicles. This makes it ideal for mixed fleets or public charging networks.

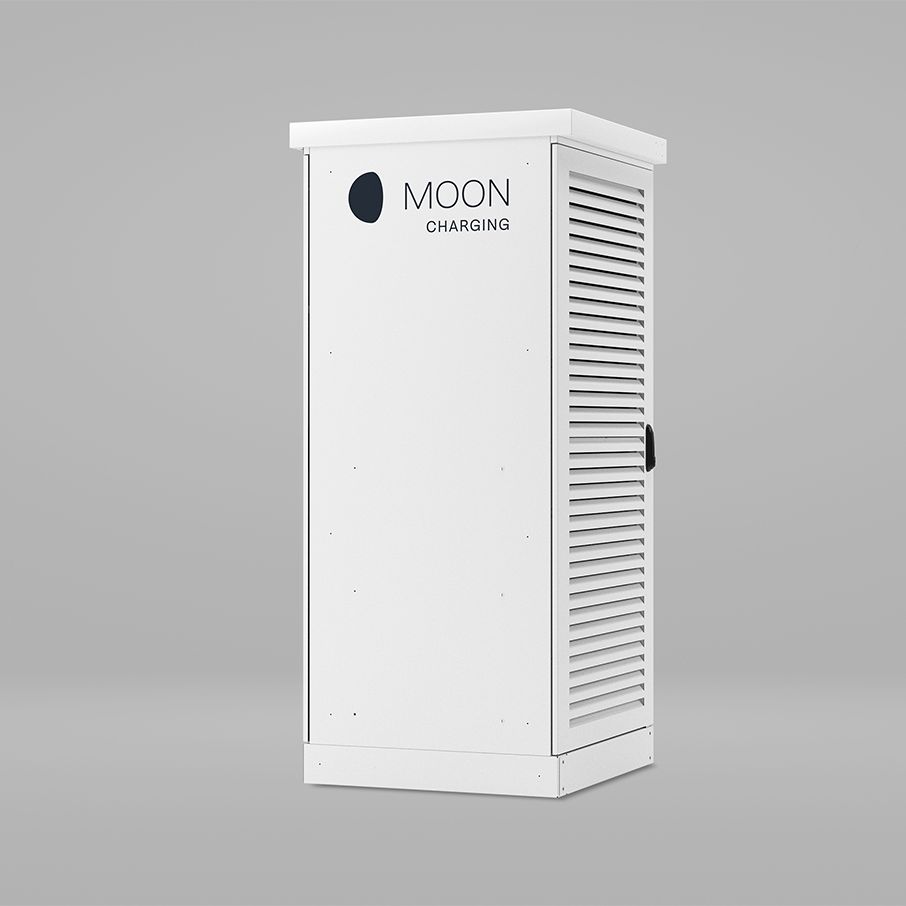

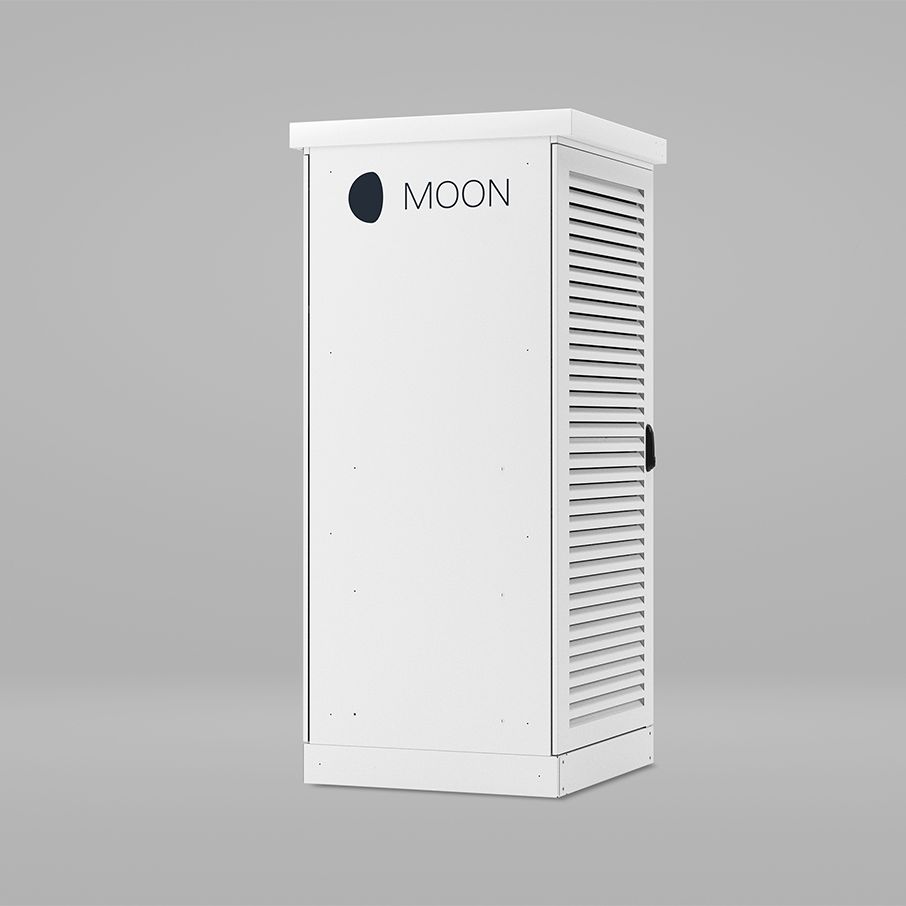

Power Unit Axon Side
The Axon Side power unit supplies up to six charging points simultaneously and forms the heart of the modular system – with efficient control and billing. This way, the charging infrastructure can be flexibly expanded and supply different types of electric vehicles.

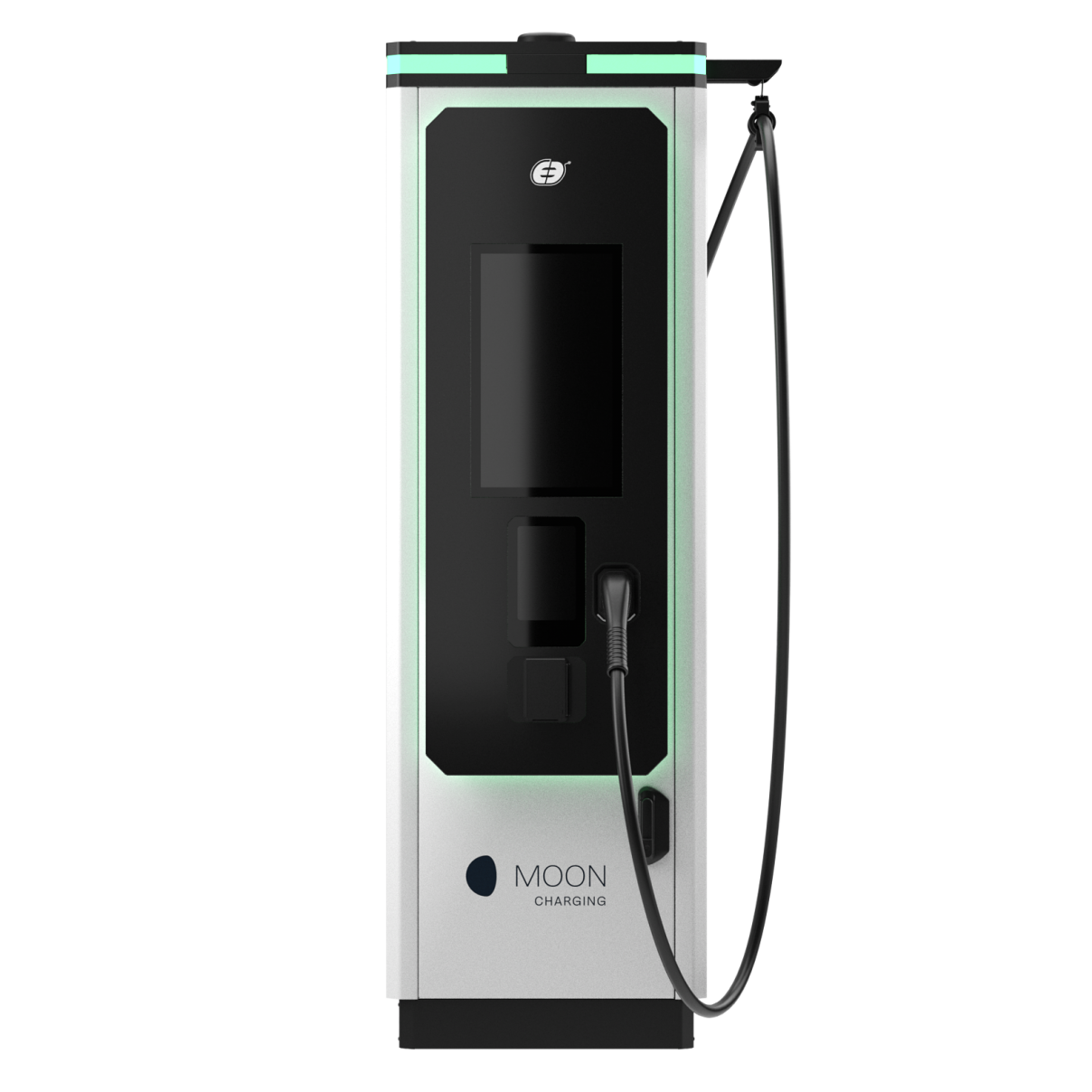

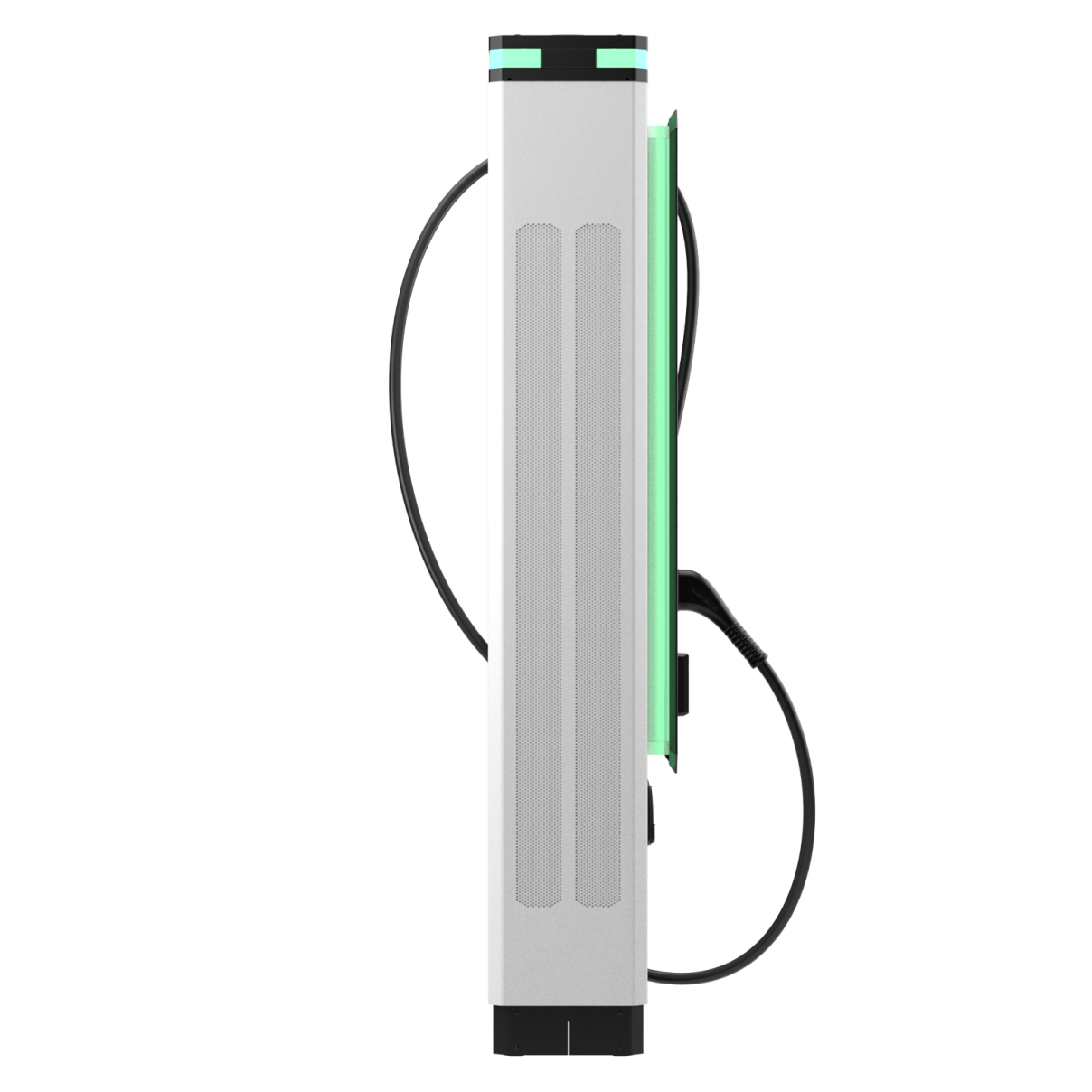

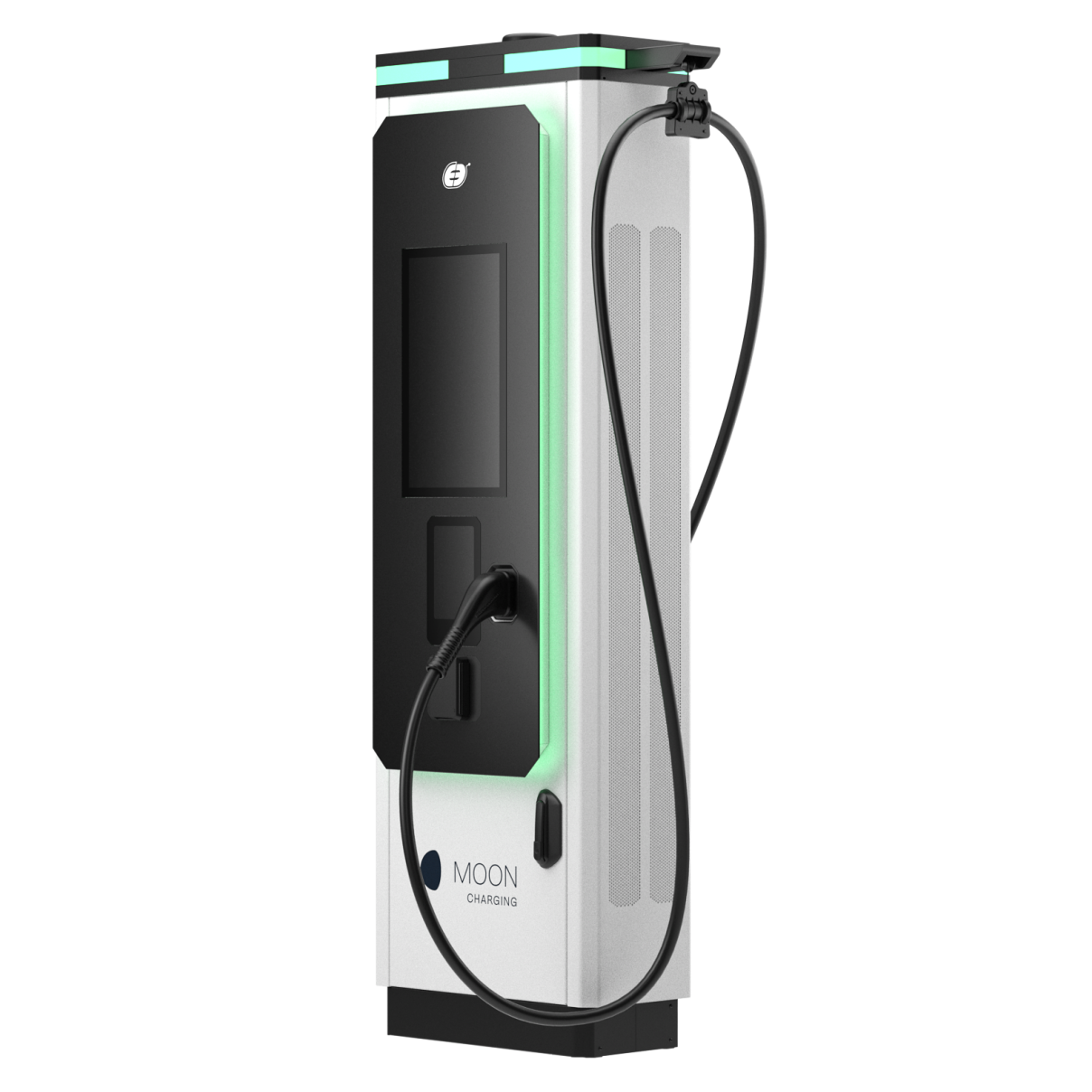

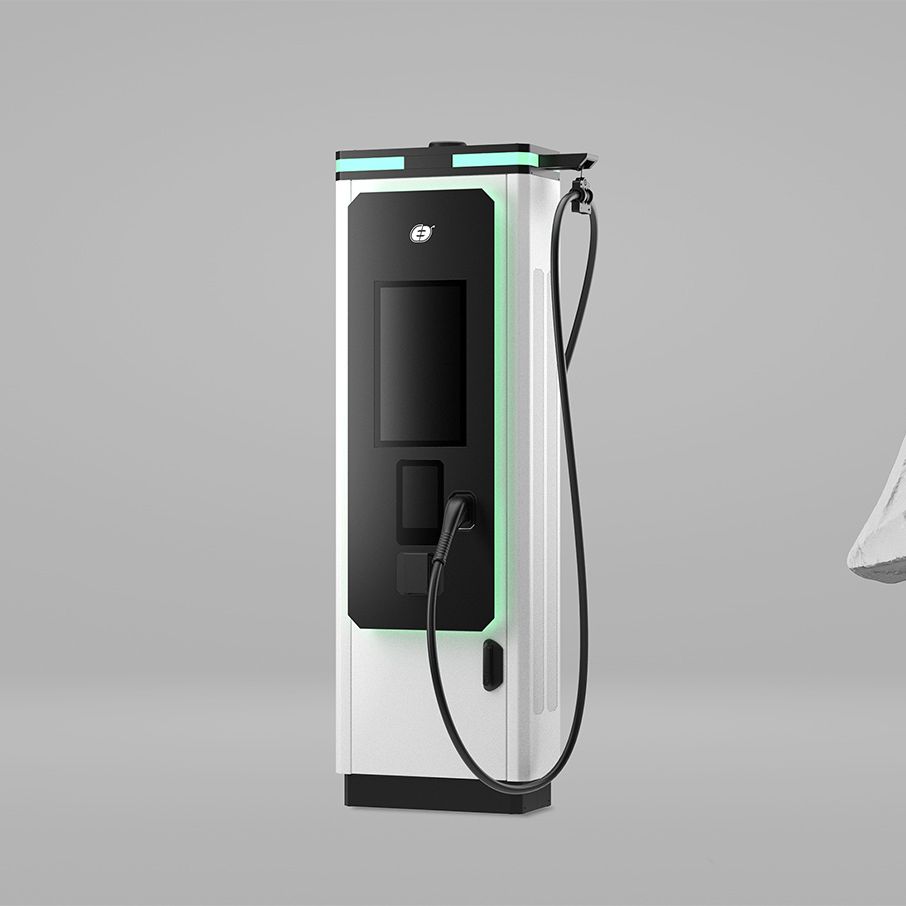

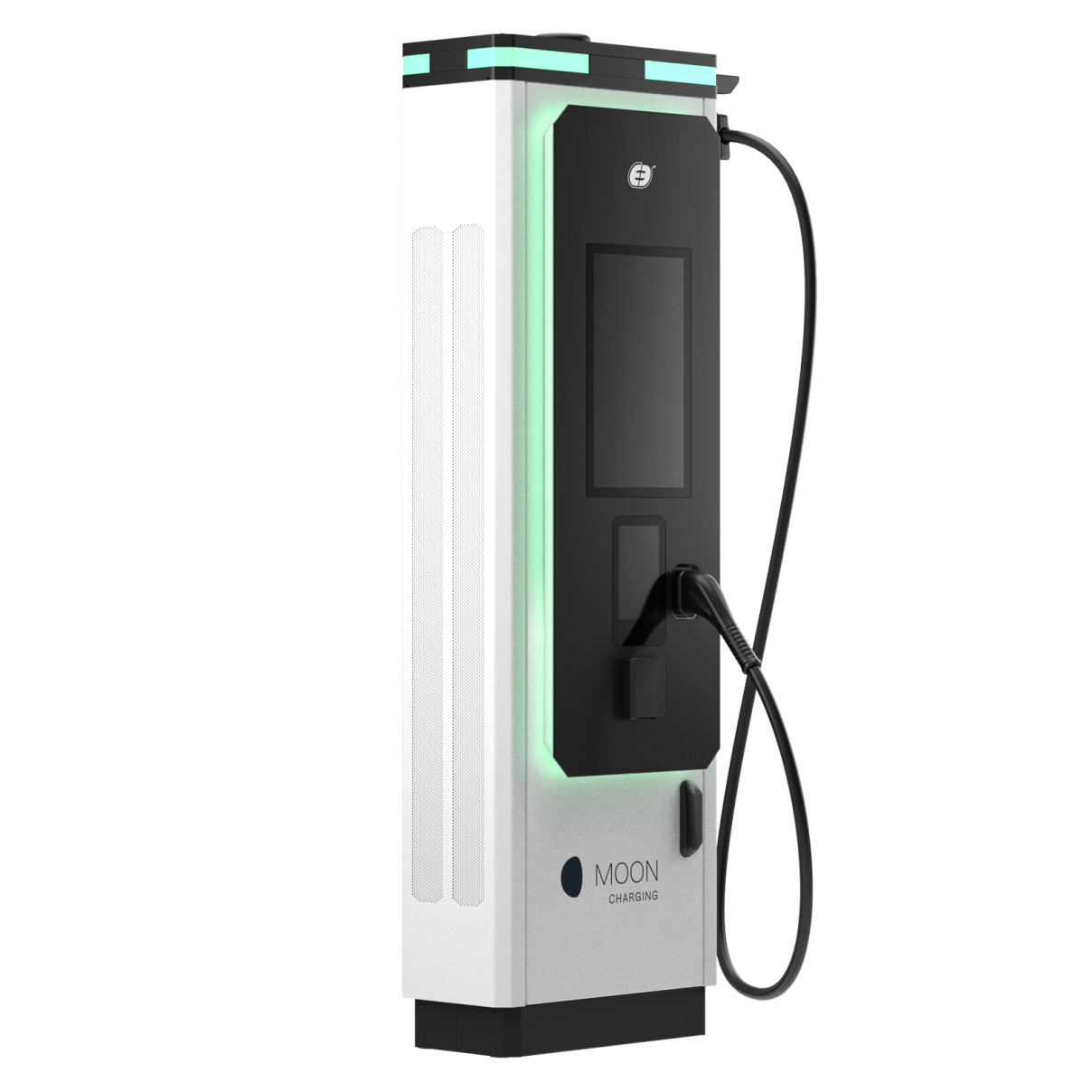

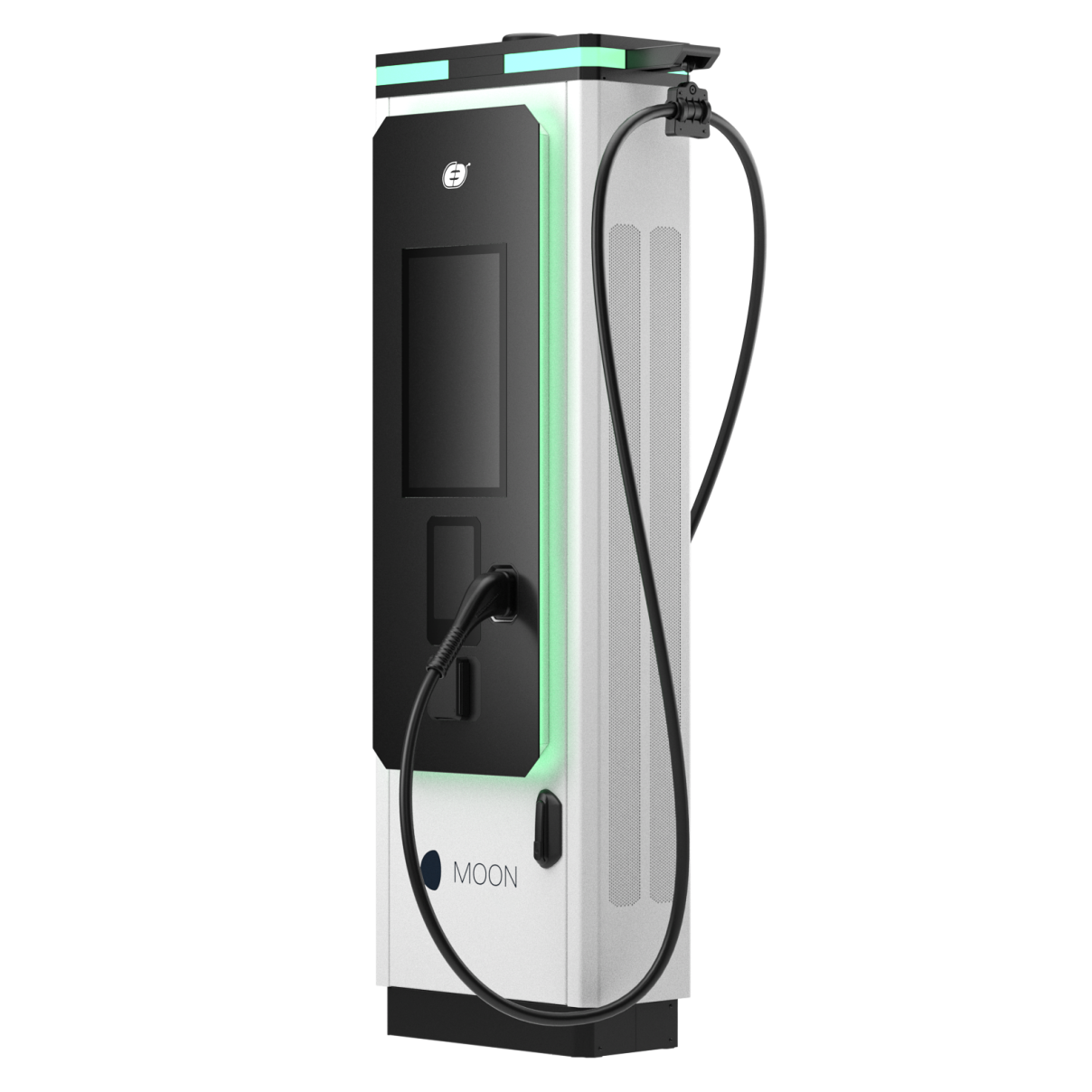

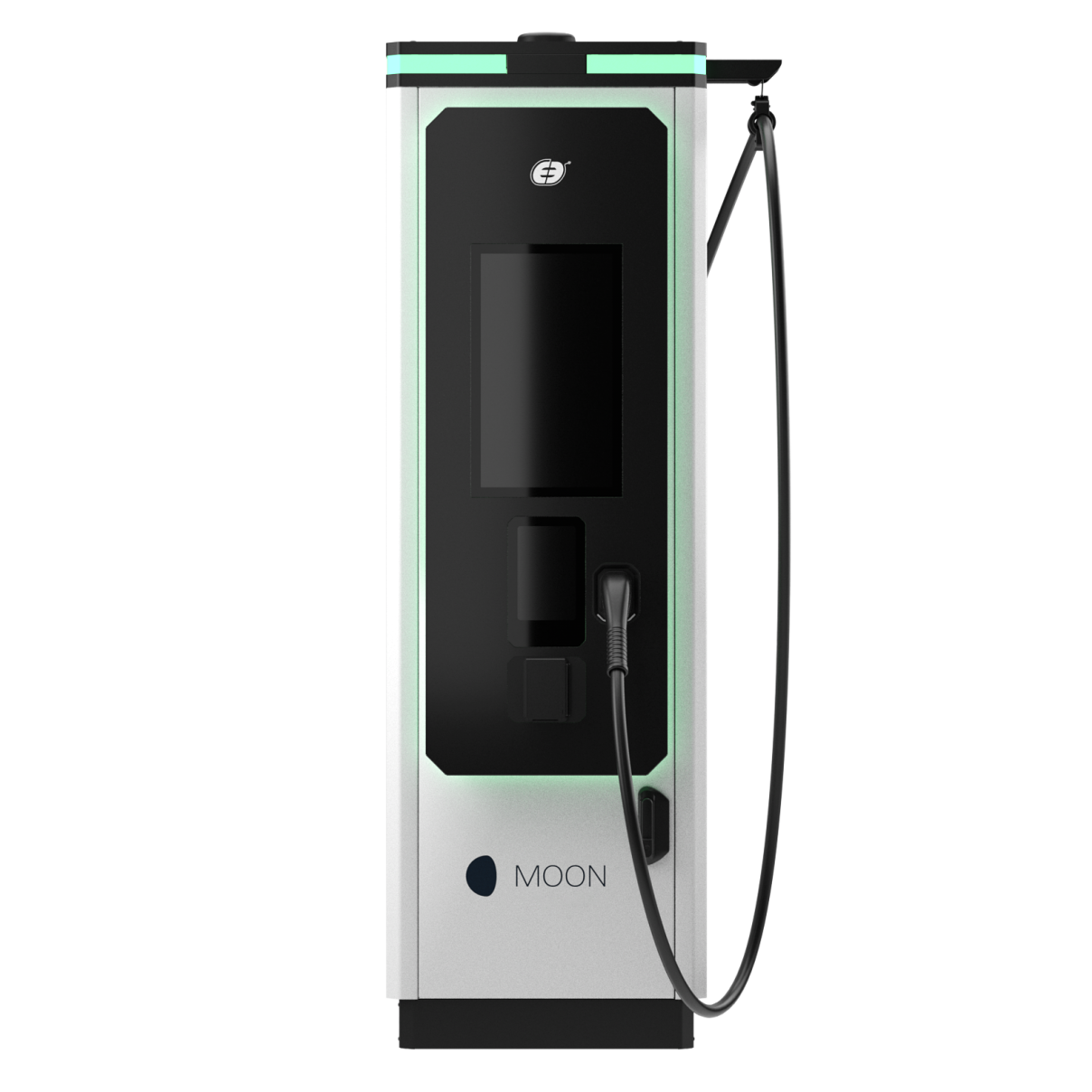

Highest charging capacity: SAT 600
With up to 600 A charging current, the SAT 600 sets new standards in the fast-charging sector – ideal for power-intensive applications and high availability. Together with its robust design and user-friendly operation, it is a perfect and future-proof concept solution for charging parks.

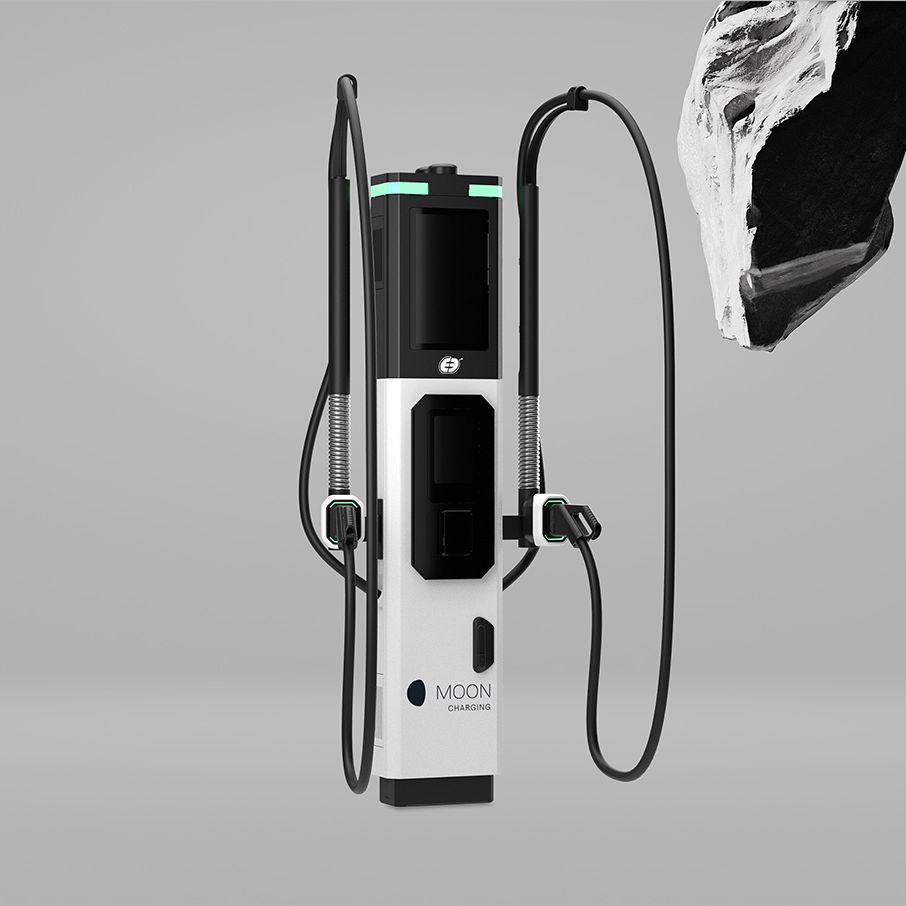

For two charging points: SAT 400
The SAT 400 with two charging points is the right solution for optimal use of space and resources. Its innovative cable management and compact design make it ideal for urban locations and charging hubs. With the POWER unit, it represents a scalable charging infrastructure.
Efficient & space-saving
Optimal use of space thanks to compact design. High charging power for various applications.
Flexible charging option
The SAT 600 offers one charging point, while the SAT 400 offers two charging points (right and left).
Calibration law and AFIR compliant
Charging station in compliance with calibration law for transparent and precise billing of all charging processes.
Intuitive touchscreen
10-inch touch screen with RFID reader and day and night mode for intuitive and convenient use.
Plug & Charge
Convenient charging without additional authentication – simply connect the vehicle and charge immediately.
Advertising display with remote maintenance
19-inch display (SAT 400) and 24-inch display (SAT 600) for dynamic, remote-controlled advertising content.
Individual branding
Design options in MINI, MIDI and MAXI. Full-wrap design available on request.
Scalable infrastructure
Modular system for flexible expansion – ideal for public grids, fleets and charging hubs.
Technical & Mechanical Data
Charging power
max. charging current: 400A (up to 500A)
Dimensions in mm
2000 x 400 x 250/290 mm (housing)
Protection
IP54 and IK10
Assembly
Outdoor area
Ambient temperature
-35°C to +55°C (Derating from 40°C)
Communication
OCPP 1.6-J/ OCPP 2.0.1
Charging power
max. charging current: 500A (up to 600A)
Dimensions in mm
2300 x 735 x 425 mm (housing)
Protection
IP54 and IK10
Assembly
Outdoor area
Ambient temperature
-35°C to +55°C (Derating from 40°C)
Communication
OCPP 1.6-J/ OCPP 2.0.1
Charging power
max. charging power: 360kW
Dimensions in mm
2300 x 1000 x 1050
Protection
IP54 and IK10
Assembly
Outdoor area
Ambient temperature
-35°C to +55°C (Derating from 40°C)
Communication
OCPP 1.6-J/ OCPP 2.0.1
Downloads
FAQs
The MOON POWER Chargers SAT 400-600 stand out from the competition due to an encapsulated power unit (Axon Side). They also offer an outstanding combination of space-saving design and flexible application options.
The power electronics are placed in a separate location, after which users benefit from a quiet charging process.
Depending on outdoor conditions, the power electronics can continuously call up the full power of up to 600 A. For a vehicle with 800 V voltage (e.g. truck), this corresponds to a maximum charging power of 480 kW.
The systems have an integrated load management system that can dynamically distribute the power to the different charging points.
The SAT chargers can be connected to any common backend based on OCPP 1.6 or 2.0. We recommend our backend B-MoRe, in which we have already integrated over 4,000 charging points.
Yes, several vehicles can be charged at the same time. Axon Side 360 offers the possibility to charge up to six vehicles (two vehicles per charger).
The fast chargers have been specially developed for outdoor installation. They have an IP factor of 54 and can be easily installed at an altitude of up to 2,000 m above sea level. Mechanically, they are protected against shocks according to IK10 and are also designed for all common operating temperatures from -35°C to +55°C.* *It should be noted that from an operating temperature of 40°C, a possible output power limitation may take place.
