MOON POWER Charger HYC 1000
Scalable megawatt charging system: up to 1,000 kW of charging power flexibly distributed for trucks, buses, fleets and charging hubs.
Price on request
The POWER Charger HYC 1000 is a scalable DC fast charging system for applications in the megawatt range. With a total output of up to 1,000 kW, the system is suitable for trucks, buses, fleets, depots and highly frequented charging hubs.
Megawatt Charger for flexible charging infrastructure
The POWER Charger HYC 1000 is based on eight SiC power stacks and a decentralised architecture consisting of a power cabinet and dispensers that can be flexibly combined. The available charging power is dynamically distributed in 62.5 kW increments to up to eight charging points.
The DC charging station can be configured to suit the vehicle mix, idle times, space available and actual power requirements, from car fast-charging hubs to heavy-duty applications with MCS.
1,000 kW
1 MW as maximum system output
CCS2 and MCS
Both charging standards in one system
62,5 kW
Dynamic power levels
8 DC outputs
Charge up to 8 vehicles at the same time
Planning, implementation & installation
Secure authentication & billing
Distribute power intelligently

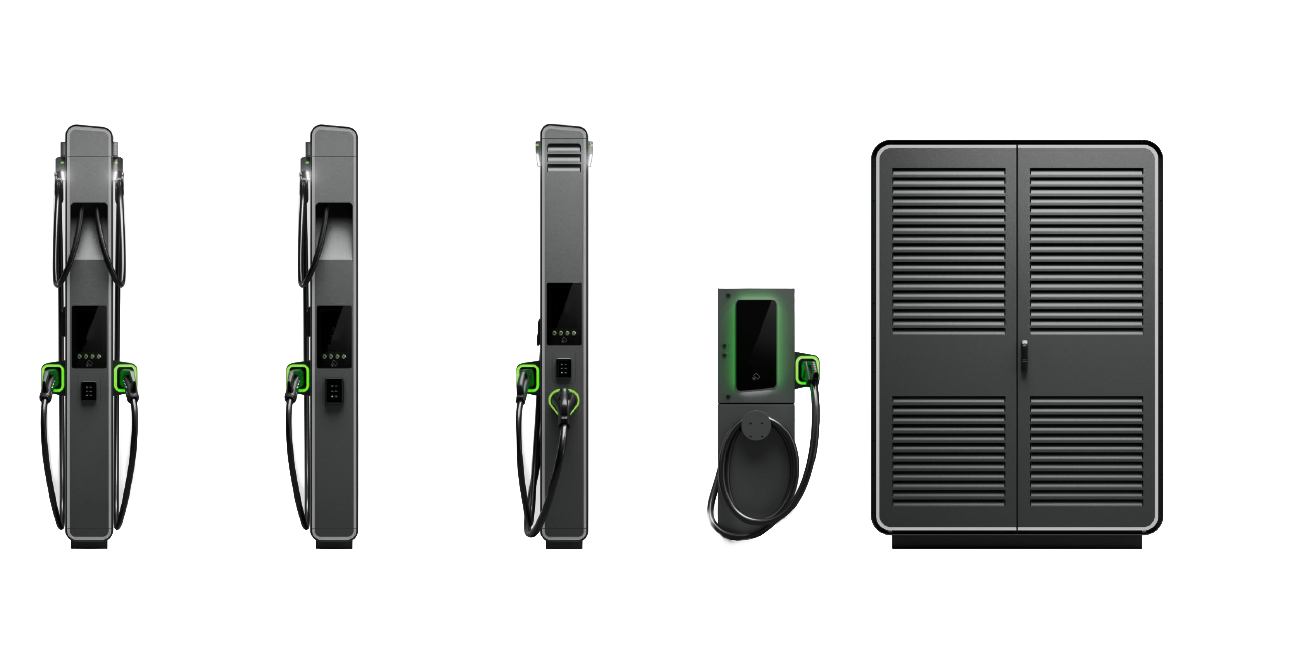

One system. Many possibilities.
Power where it's needed
In the POWER Charger HYC 1000, power electronics and charging points are spatially separated: The central power cabinet provides up to 1,000 kW of DC power and distributes it to the connected dispensers as needed. This means that CCS2 and MCS charging points, different vehicle classes and different charging capacities can be operated within a common, scalable system architecture.
Scalable platform
Eight SiC power stacks enable flexible system design.
Space-saving installation
Optimal use of space through decentralised installation.
Remote-Service
Analysis, diagnostics and software updates are possible remotely.
Compliant with calibration law
An energy metering system that complies with calibration law is available as an option.
The power center of the system

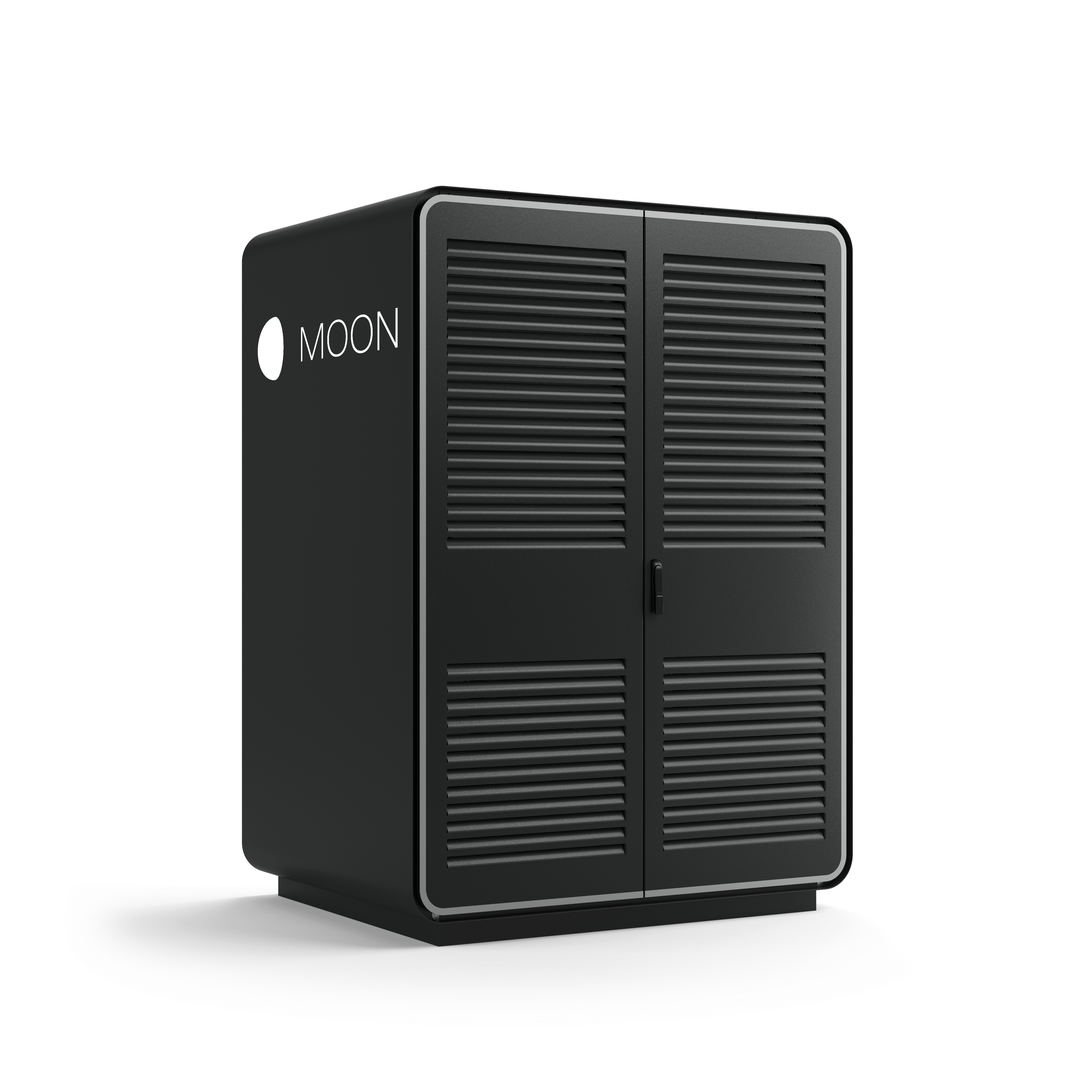

Power Cabinet
The Power Cabinet bundles the power electronics of the HYC 1000 system. Up to 1,000 kW of DC power is centrally available and dynamically distributed to up to eight DC outputs. The modular design enables precise design for current requirements and creates scope for future growth.
- Up to 1 MW total capacity
- 8 DC outputs for flexible system configurations
- Power allocation in 62.5 kW increments
- Indoor and outdoor operation
- OCPP 1.6 JSON and OCPP 2.0.1

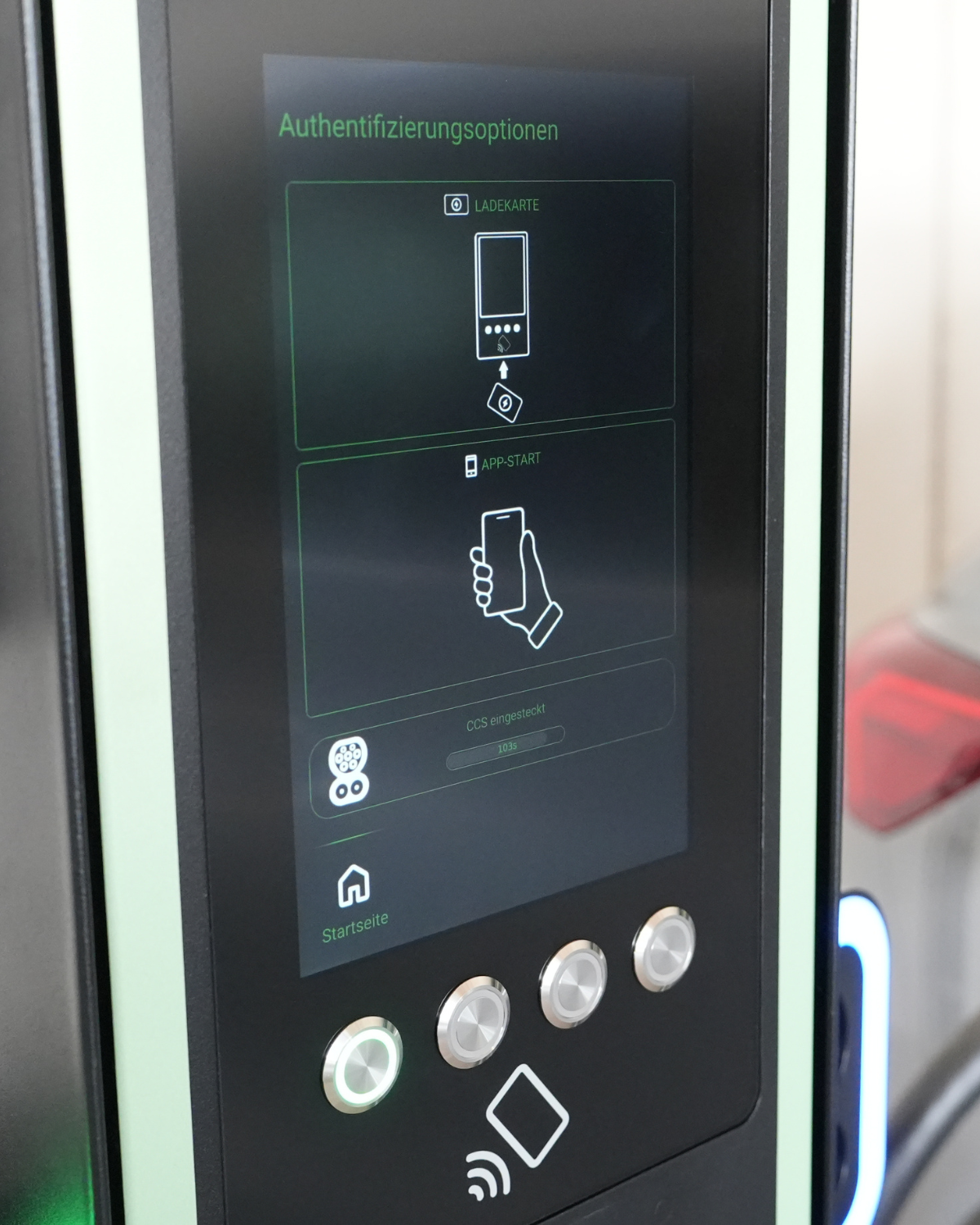

- Built-in RFID card reader and 10.1-inch touchscreen
- Optional calibration compliant design for Germany
- Custom colors, foiling and stickers
Megawatt charging for heavy-duty transport

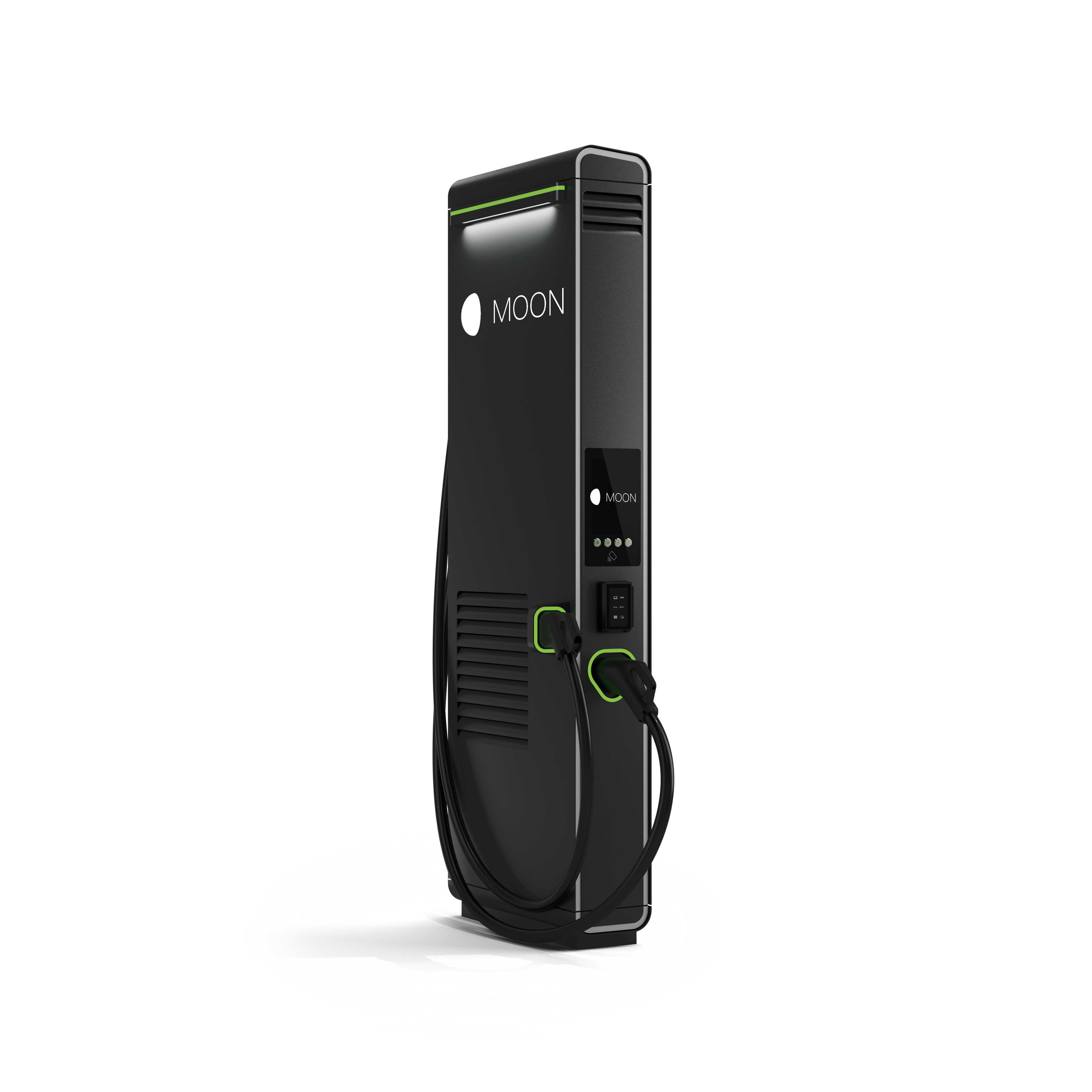

HYC 1000 MCS Dispenser
The MCS dispenser transfers the power of the HYC 1000 system to heavy commercial vehicles and other applications with particularly high energy requirements. The oil-cooled MCS connection is designed for high currents and can be supplemented with a CCS2 charging point, depending on the variant.
- MCS connection for demanding heavy-duty applications
- Up to 1,500 A via oil-cooled MCS cable
- Optional additional CCS2 charging point with up to 600 A, oil-cooled
- RFID and optional card and QR code readers
- Remote analysis, diagnostics and software updates
- Optional DC energy metering according to German calibration law
- Custom branding possible
Connections
MCS, optional CCS2
Output voltage
150 to 1,000 V DC
Cable lengths
MCS 3,3 m; CCS 3,0 m
Display
Large 10.1-inch touchscreen with push buttons
Flexible fast charging for passenger cars and commercial vehicles

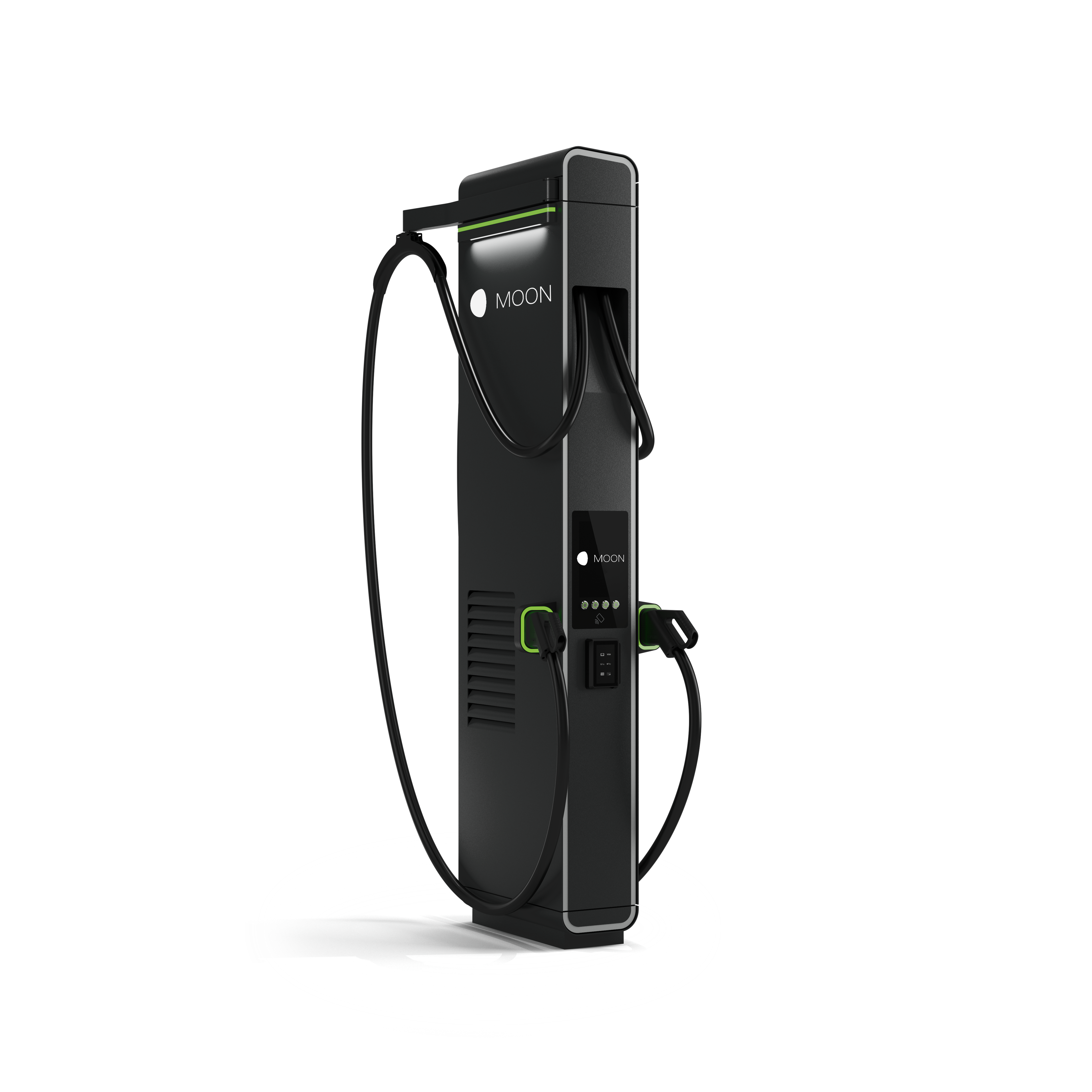

HYC 1000 EV Dispenser
The EV Dispenser brings high charging power to where vehicles are parked. With up to two CCS2 charging points, cooled and uncooled cable variants and integrated cable management, it is suitable for highly frequented charging hubs and mixed fleets.
- Up to two CCS2 charging points
- Up to 600 A with oil-cooled CCS2 cable
- Up to 400 A with uncooled CCS2 cable
- Dynamic power allocation in 62.5 kW steps
- Integrated cable management
- RFID and optional card and QR code readers
- Remote Management and Custom Branding
Connections
up to 2 x CCS2
Output voltage
150 to 1,000 V DC
Cable lengths
3 bis 5,5 m bei 600 A; 7,5 bis 10 m bei 400 A
Display
Großer 10,1-Zoll-Touchscreen mit Drucktasten
Maximum CCS power at one charging point

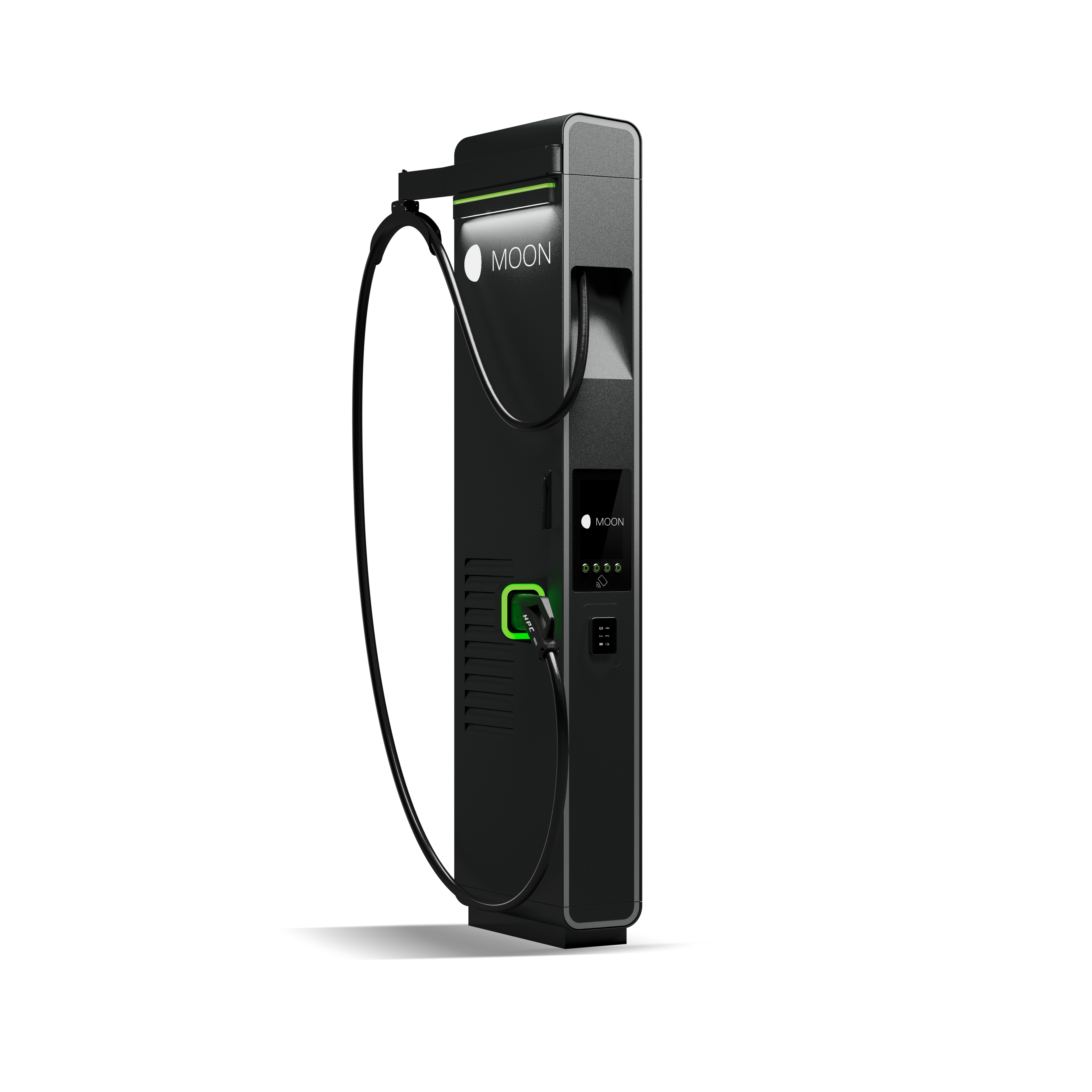

HYC 1000 HP Dispenser
The HP Dispenser concentrates high system performance on a CCS2 charging point. The oil-cooled high-performance cable and integrated cable management support convenient charging with high power requirements.
- A CCS2 high-power charging point
- Up to 1,000 A with oil-cooled cable
- Dynamic power allocation via the Power Cabinet
- Integrated cable management
- RFID and optional contactless payment options
- Remote analysis, diagnostics and software updates
- Optional calibration-compliant DC energy metering
Connections
1x CCS2
Output voltage
150 to 1,000 V DC
Cable lengths
5,5 m
Display
Large 10.1-inch touchscreen with push buttons
Compact. Flexibly mounted. Made for the depot.

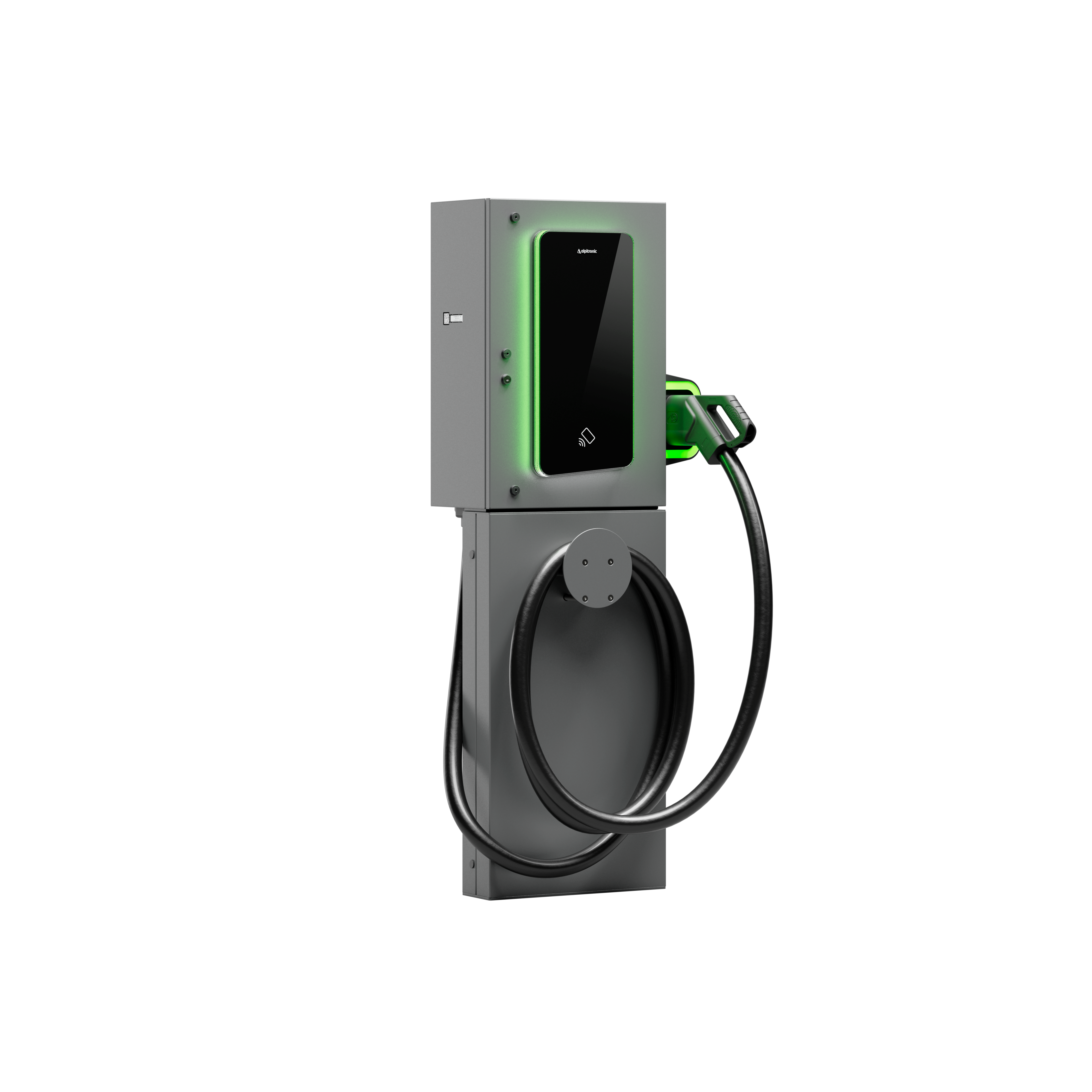

HYC 1000 Depot Dispenser
The HYC 1000 Depot Dispenser is a compact DC charging solution for depots, fleets and depots. The flexible mounting on walls, ceilings or gantries or steles enables space-saving integration into a wide variety of location concepts. Up to eight depot dispensers can be operated with one HYC 1000 V3 Power Cabinet.
- Compact housing for space-critical locations
- A CCS2 charging point with up to 400 A peak current
- Cable lengths of 2.0 m, 5.5 m or 7.5 m
- Mounting on wall, ceiling/gantry or stele
- Up to eight depot dispensers per Power Cabinet
- RFID and interface for external stop button
- OCPP 1.6 J and 2.0.1 J
- Remote analysis, diagnostics and software updates
Connections
1x CCS2
Output voltage
150 to 1,000 V DC
Cable lengths
2.0 m; 5.5 m; 7.5 m
Display
Large touchscreen
Overarching Feature Modules
Networked and updateable
OCPP 1.6 J or JSON and OCPP 2.0.1 enable the backend connection. Remote analysis, diagnostics and software updates support ongoing operation.
Uniform brand identity
Colours, foils and stickers can be customised. This means that the system fits into the corporate identity of the location.
Robust for everyday use
Depending on the variant, the system components are protected according to IP54 or IP55 and meet IK10 against mechanical impacts.
Comfortable cable handling
EV and HP dispensers have integrated cable management. Different cable types and lengths support site-specific design.
Technical & Mechanical Data
Maximum DC power
1,000 kW
Initial granularity
62,5 kW
Charging voltage range
150 to 1,000 V DC
DC Outputs
8
Maximum current per output
600 A
AC Voltage Rating
400 V or 480 V, -10 % / +10 %
Nominal Input Current
1.600 A
Power Factor
> 0.99 at full load
Dimensions W x H x D
2.200 x 1.567 x 1.244 mm
Weight
up to 2,000 kg
Degree of protection / impact resistance
IP54 / IK10
Operating Temperature
-30 to +40 °C, up to +55 °C with derating
Communication
4G LTE/2G, Ethernet 10/100Base-TX
Protocols
OCPP 1.6 JSON and 2.0.1
Connections
MCS, optional CCS2
Maximum current
MCS: 1.500 A oil-cooled; CCS2: 600 A oil-cooled
Output voltage
150 to 1,000 V DC
Performance granularity
62,5 kW
Cable lengths
MCS 3,3 m; CCS 3,0 m
Dimensions W x H x D
2.320 x 260 x 780 mm
Weight
350 kg
Degree of protection / impact resistance
IP54 / IK10
Operating altitude
up to 2,500 m above sea level
Connections
up to 2 x CCS2
Maximum current
600 A oil-cooled or 400 A uncooled
Output voltage
150 to 1,000 V DC
Performance granularity
62,5 kW
Cable lengths
3 to 5.5 m at 600 A; 7.5 to 10 m at 400 A
Dimensions W x H x D
2,320 x 260 x 630 mm incl. cable management
Weight
275 kg
Degree of protection / impact resistance
IP54 / IK10
Connections
1 x CCS2
Maximum current
1,000 A oil-cooled
Output voltage
150 to 1,000 V DC
Performance granularity
62.5 kW
Cable lengths
5,5 m
Dimensions W x H x D
2,320 x 260 x 630 mm incl. cable management
Weight
290 kg
Degree of protection / impact resistance
IP54 / IK10
Connections
1 x CCS2
Maximum current
400 A peak current
Voltage range
150 to 1,000 V DC
Performance granularity
62.5 kW
Cable lengths
2.0 m / 5.5 m / 7.5 m
Dimensions W x H x D
400 x 600 x 250 mm
Weight
up to 35 kg plus cable weight
Degree of protection / impact resistance
IP54 / IK10
Operating Temperature
-30 to +55 °C
Mounting
Wall, ceiling/gantry or stele
Downloads
FAQs
The HYC 1000 is a modular DC fast-charging system with a total output of up to 1,000 kW. A central power cabinet supplies different dispensers and dynamically distributes the power to up to eight charging points. The system is designed for charging hubs, logistics sites, bus fleets, depots and heavy-duty applications.
Depending on the configuration, the POWER Charger HYC 1000 can charge up to eight vehicles at the same time.
The HYC 1000 platform combines CCS2 solutions for passenger cars and commercial vehicles with an MCS dispenser for heavy-duty applications.
The Power Cabinet of the HYC 1000 uses eight SiC power stacks and dynamically allocates the available power in 62.5 kW increments. This provides the connected charging points with power as needed.
Yes. The HYC 1000 system supports OCPP 1.6 and OCPP 2.0.1.
RFID is integrated into the HYC 1000. Depending on the variant, card readers and QR code readers are optionally available.
An energy meter for Germany that complies with calibration law is optionally available for the HYC 1000.
The Depot Dispenser can be mounted on the wall, ceiling or gantry as well as on a stele.
