MOON Charger Double/Single Pro-line
The energy-efficient, robust and intelligent Pro-line wallbox is perfect for (semi-)public use.
Price on request
A smart charging station for every application. The Pro-line series is characterised by its compact design, flexible mounting options, user-friendly operation and 22 kW charging power per charging point. In addition, the wallbox, in both versions, impresses with its efficient load management.
Charging power
Depending on the vehicle type and supply line situation, the power of up to 22kW can be utilized per socket.
Charging at the same time
Depending on the version (double or single), up to two vehicles can be charged at the same time (up to 22 kW per vehicle).
Warranty
Our Pro-line models have a 24-month warranty. It can be extended to up to 60 months.
Simple
Easy installation due to lightweight and compact housing. Fire retardant and impact resistant. With and without a stand.
Modern load management for constant charging power, dynamic consumption adjustment and intelligent communication.
Intelligent, compact and versatile
With a total weight of only 4 kg, the Single Pro-line is ideal for home use or small business locations.

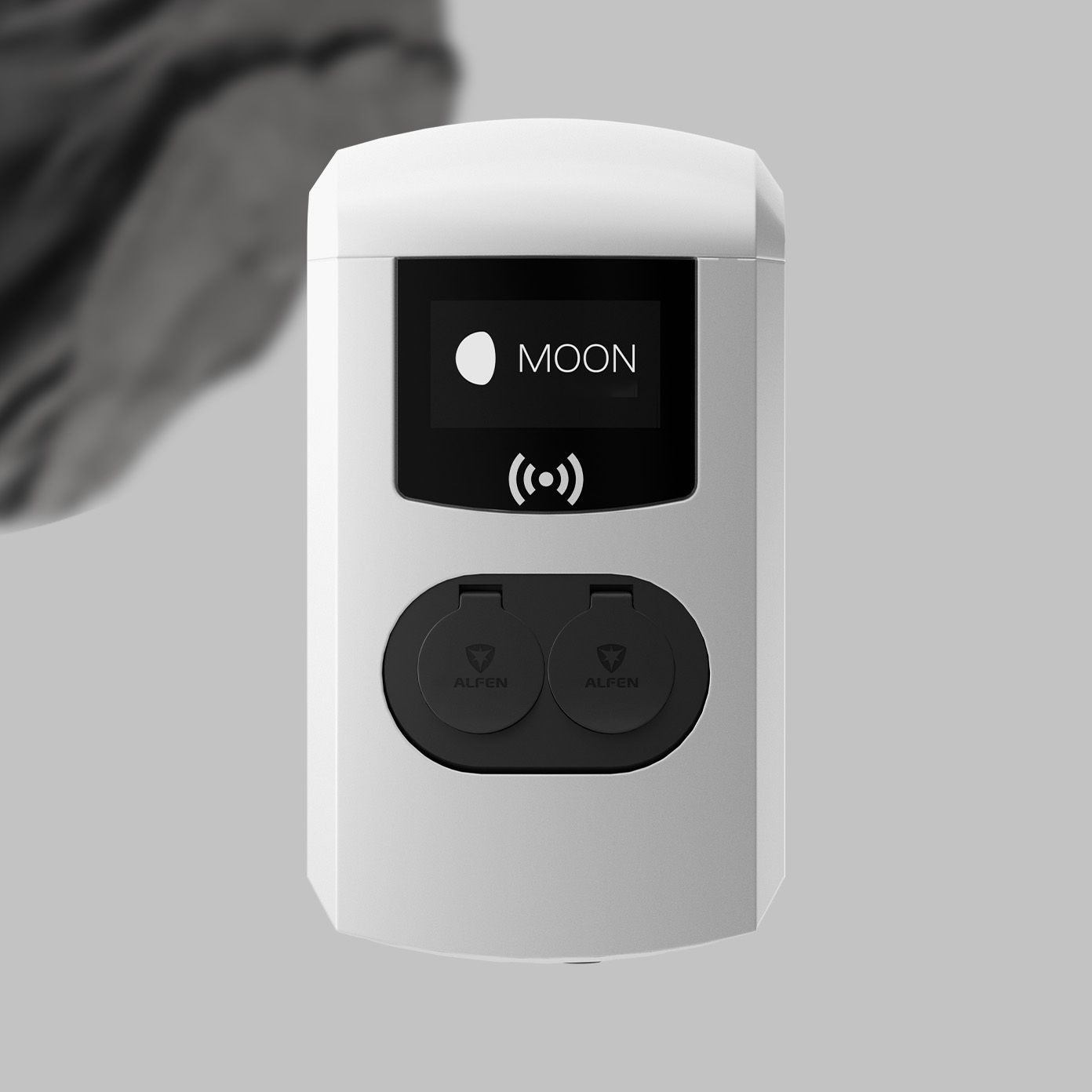

The Double Pro-line has been specially developed for locations with higher requirements. With technology that complies with calibration law and a 3.5-inch colour display, single and double enable efficient and intelligent charging in the private and public sectors.
Easy to use
Thanks to RFID activation, the vehicle can be easily charged and the charging status can be tracked on the LED screen.
Fast charging
With a charging power of 22 kW per socket, the vehicles can be charged efficiently and quickly.
Secure payment
Advanced encryption protects user data while charging and paying.
Flexible application
With powerful additional licenses, every area of application can be covered efficiently.

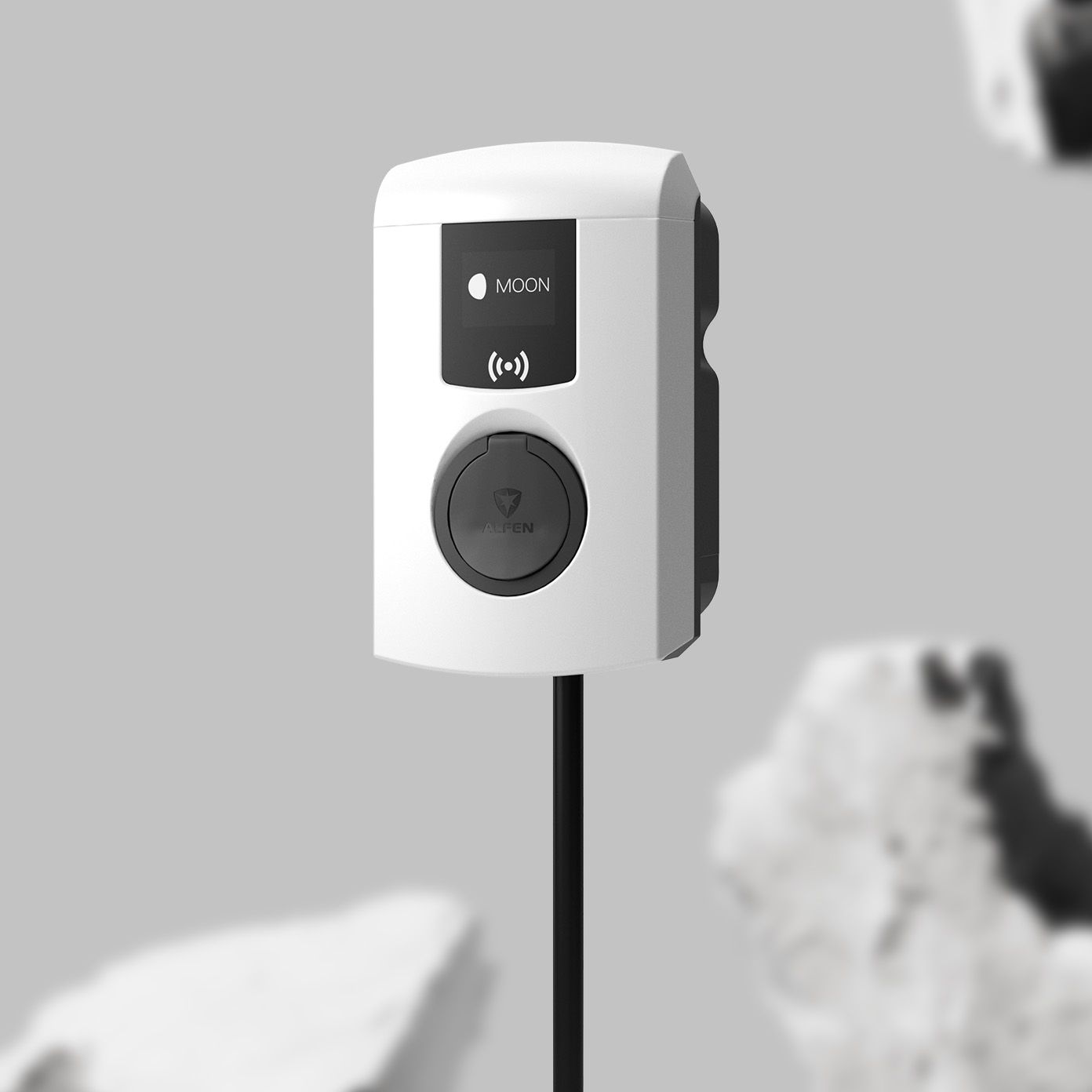

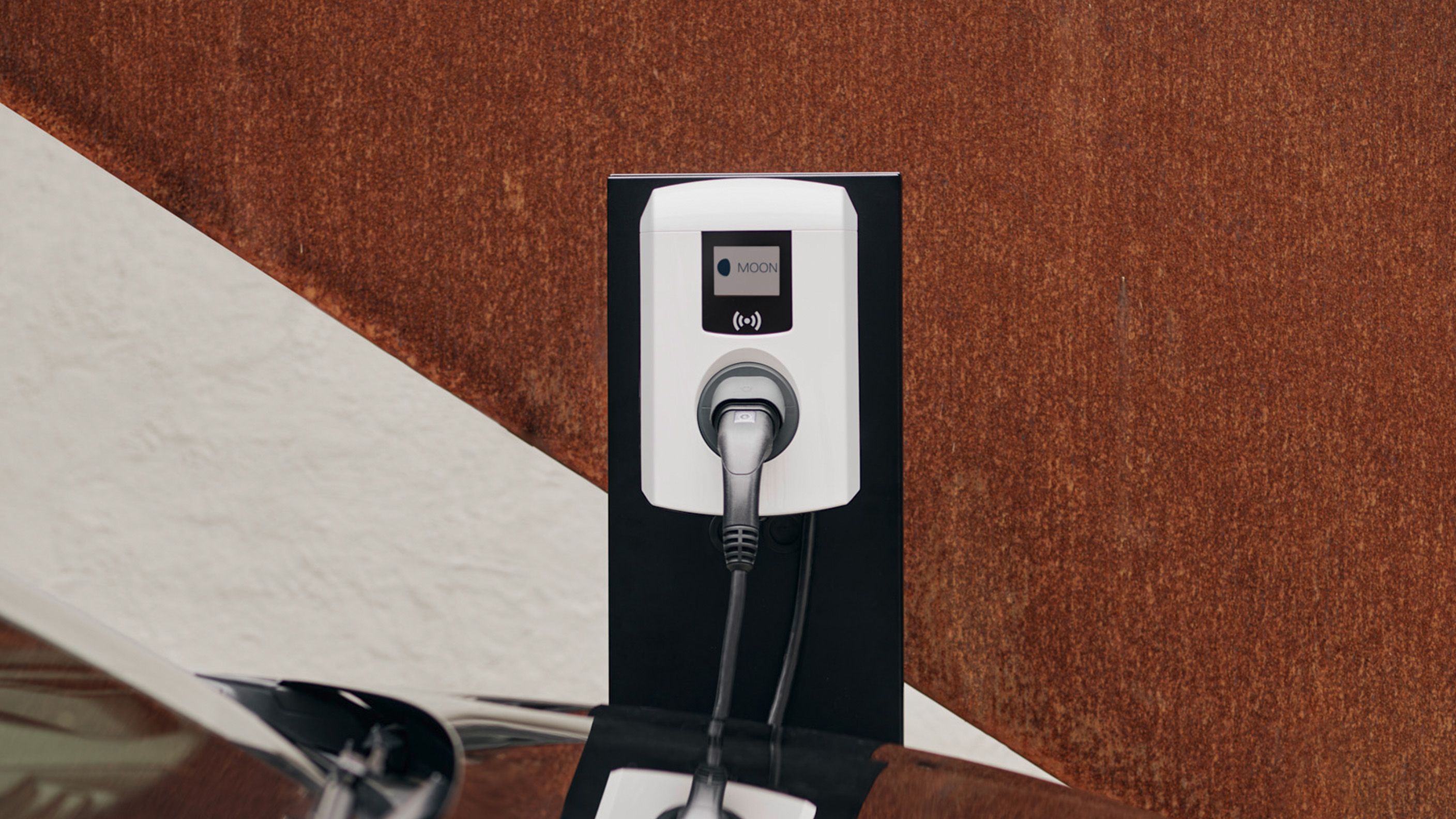

Single Pro-line
Intelligent and efficient wallbox for (semi-)public charging in a slim design.
100% safe
Transparent data processing and advanced data encryption for secure charging and payment.
Easy Charging
The RFID activation ensures an uncomplicated charging process.
Perfectly combined
Additional Licenses
With additional licenses, easy integration into Smart Charging Network (SCN) or Active Load Balancing (ALB).
B-MoRe
Uncomplicated billing of charging processes, transparent monitoring and reporting – our practical charging point management system lives up to its name: B-MoRe.
Technical & Mechanical Data
Charging power
1 x 22 kW
Dimensions in mm
373 x 242 x 138 mm
Protection
IP55 and IK10
Assembly
Interior & Exterior
Ambient temperature
-25°C to +40°C
Communication
OCPP 1.5/1.6/2.0.1 Modbus [TCP/IP]
- Stele and foundation
- Additional License Smart Charging Network
- Additional License Active Load Balancing
- Individual branding possible
Charging power
2 x 22 kW
Dimensions in mm
590 x 338 x 230 mm
Protection
IP54 and IK10
Assembly
Interior & Exterior
Ambient temperature
-25°C to +40°C
Communication
OCPP 1.5/1.6/2.0.1 Modbus [TCP/IP]
- Stele and foundation
- Additional License Smart Charging Network
- Additional License Active Load Balancing
- Individual branding possible
Downloads
FAQs
The Pro-line supports the Type 2 standard, which is widely used in Europe. All common electric vehicles can be charged with it, regardless of whether they are plug-in hybrids or pure electric vehicles.
Yes, the Pro-line offers comprehensive security features to meet the highest standards. For example, the Double Pro-line is equipped with a Type B residual current circuit breaker (RCD). In addition, the Pro-Line has 6mA DC residual current detection and overcurrent protection. With the robust IK10 protection class against mechanical impact and an IP54 (Double) / IP55 (Single) certification for outdoor use, the Pro-Line ensures safe and long-lasting operation under a wide range of conditions
The Pro-line combines a modern, robust design with intelligent technology. Features such as smart charging networks, integrated SIM module, OCPP compatibility, dynamic QR code and billing in compliance with calibration law make it one of the most versatile charging stations on the market.
Thanks to its slim polycarbonate housing and the possibility of wall or stand mounting, it fits perfectly into any environment – whether at home, in parking garages or at business and corporate locations.
The Pro-line is equipped for the requirements of the future. With support for OCCP 1.6 and 2.0.1, dynamic QR code, dynamic load management and the possibility of regular software updates, the charging station adapts seamlessly to the developments in electric mobility. Another highlight: compatibility with the ISO15118 is planned.
The Pro-line was developed for continuous operation. As long as the local infrastructure supports this, it can permanently deliver the maximum output of up to 22 kW per charging point.
If the load management is an EMS or SM with Modbus TCP/IP, yes. In principle, the most common smart meters also work.
The charging stations can be connected to any common backend based on OCPP 1.5, 1.6 or 2.01. We recommend our B-MoRe backend, in which we have already integrated over 4,000 charging points.
In principle, up to two vehicles can be charged at the same time with a Double Pro-line.
