Energy storage
A flexible storage system for indoor and outdoor use Reliable performance for every business: The MOON energy storage system is a flexible, efficient and durable commercial storage system. With its high performance, it provides companies and charging parks with optimal support in implementing their energy strategy.
- Variety of applications and scalable
- Adapted to specific environments
- Expandable to max. 6 systems
Price on request
60 months warranty
Fast delivery
Personal advice
How the energy storage works
Ideal solution for businesses
Reliable performance for every business: The MOON energy storage system is a flexible, efficient and durable commercial storage. It supports companies and charging parks in implementing their energy strategy and is characterised by high performance. The system is suitable for a wide range of applications and can be easily scaled to meet future needs – both indoors and outdoors. With appropriate adaptation to the specific environments, expansion by up to six systems is possible.
Intelligent power consumption
The system uses stored energy when electricity prices are high and charges the storage system specifically at times of low prices. This means that grid electricity is purchased cost-effectively and energy costs are significantly optimised overall.
Undersized power supply
If the building's grid connection capacity is too low, the battery storage system can cushion load peaks.
Optimize self-consumption
Surplus electricity from photovoltaic systems is stored and used when needed. This increases independence from the grid.

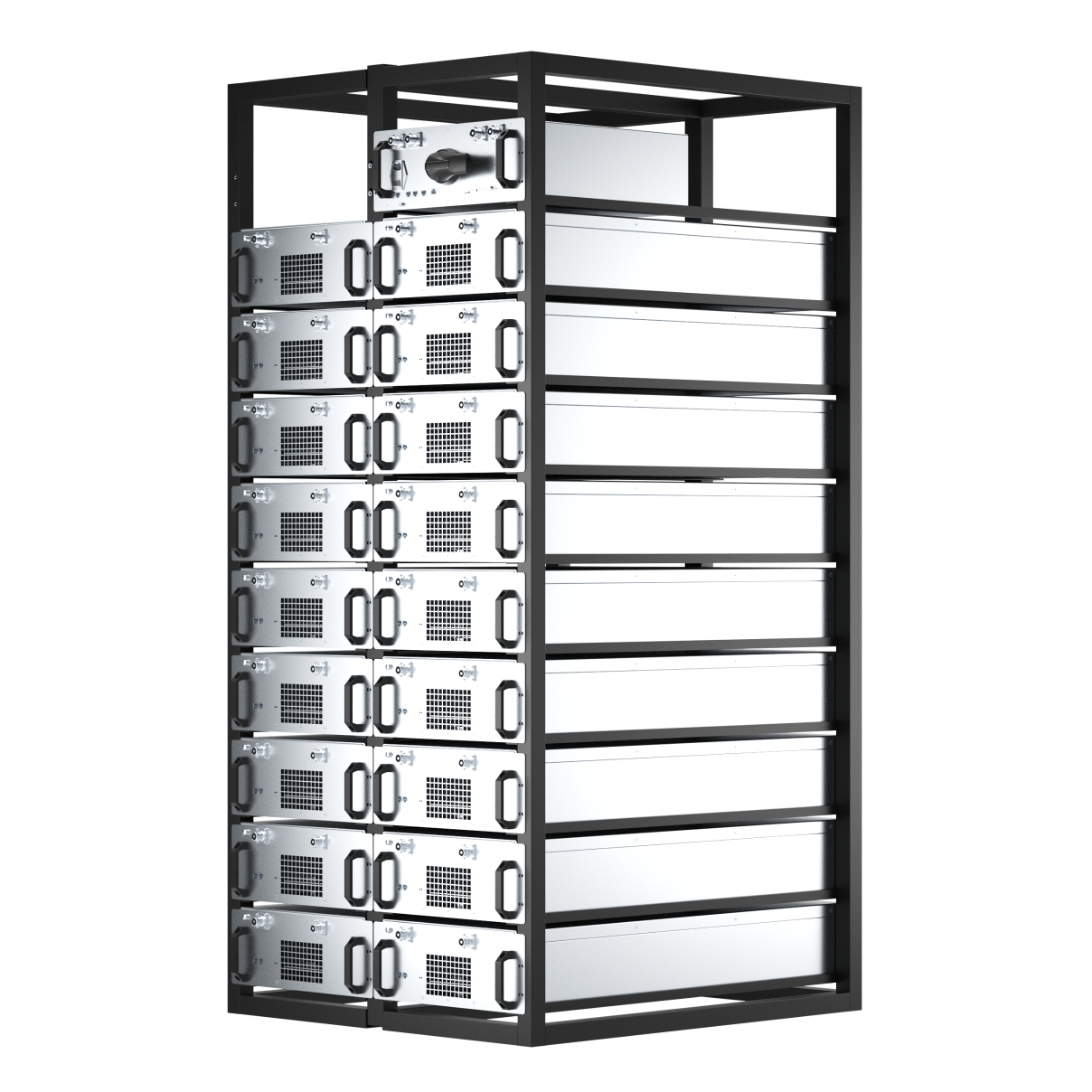

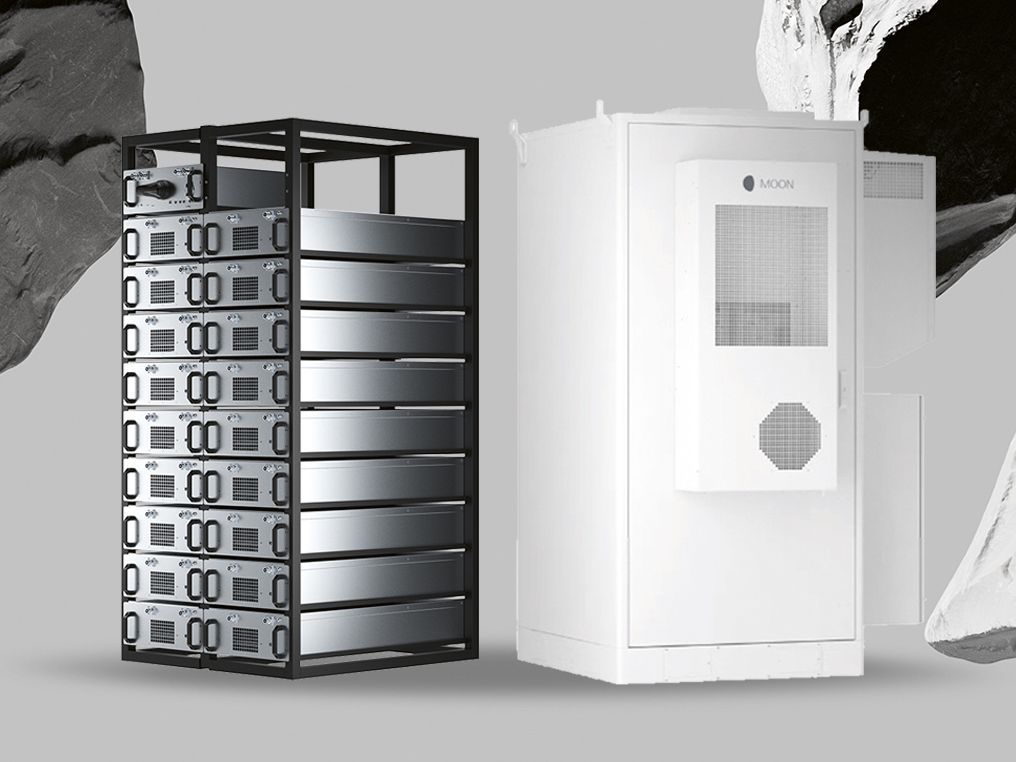

Indoor - Variant
Uses:
For commercial and industrial companies - peak shaving, self-consumption, electricity use depending on the time of day
Buffer storage for electric vehicle charging parks to increase usable output power
The MOON storage indoor system is ideal for applications that require high performance and energy density. With a capacity of 178 kWh up to 1,068 kWh, it offers the highest safety standards through the use of high-quality LFP battery cells. The system is prepared as a complete package for the connection of the inverter and can therefore be used in a wide range of applications, e.g. for peak load management, energy cost optimisation and grid stabilisation services.
- Pre-configured indoor battery storage kit
- Plug & Play system for easy installation and low installation costs
- Cell technology: Robust LFP cells guarantee safety and durability even during intensive use
- Simple and quick installation
- Production according to the highest quality and safety standards in the EU

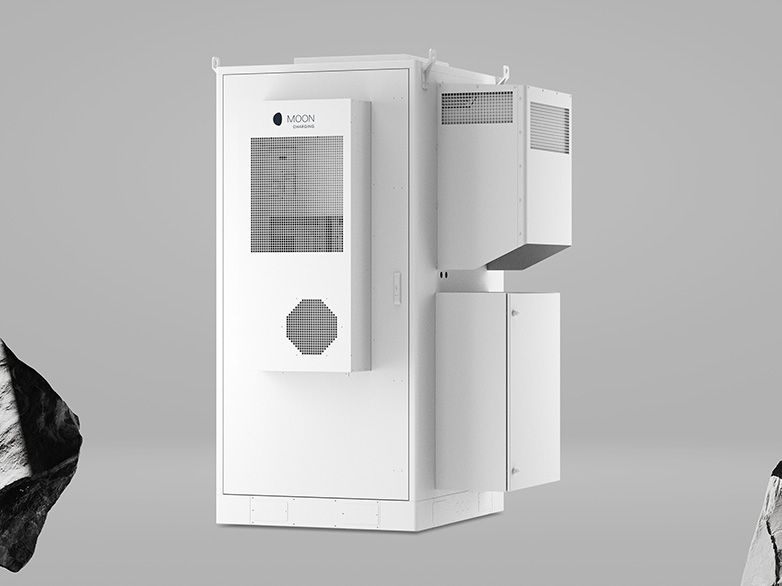

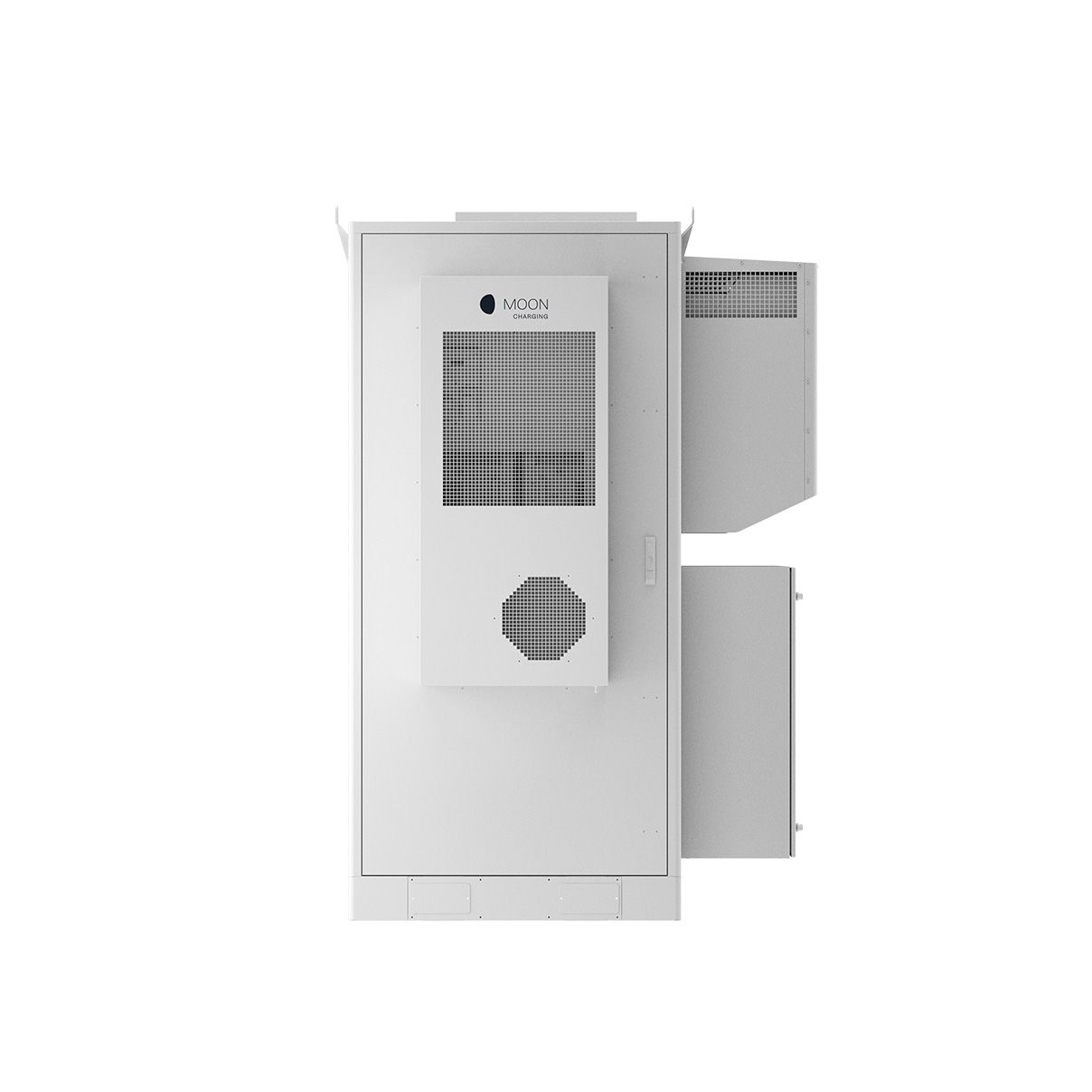

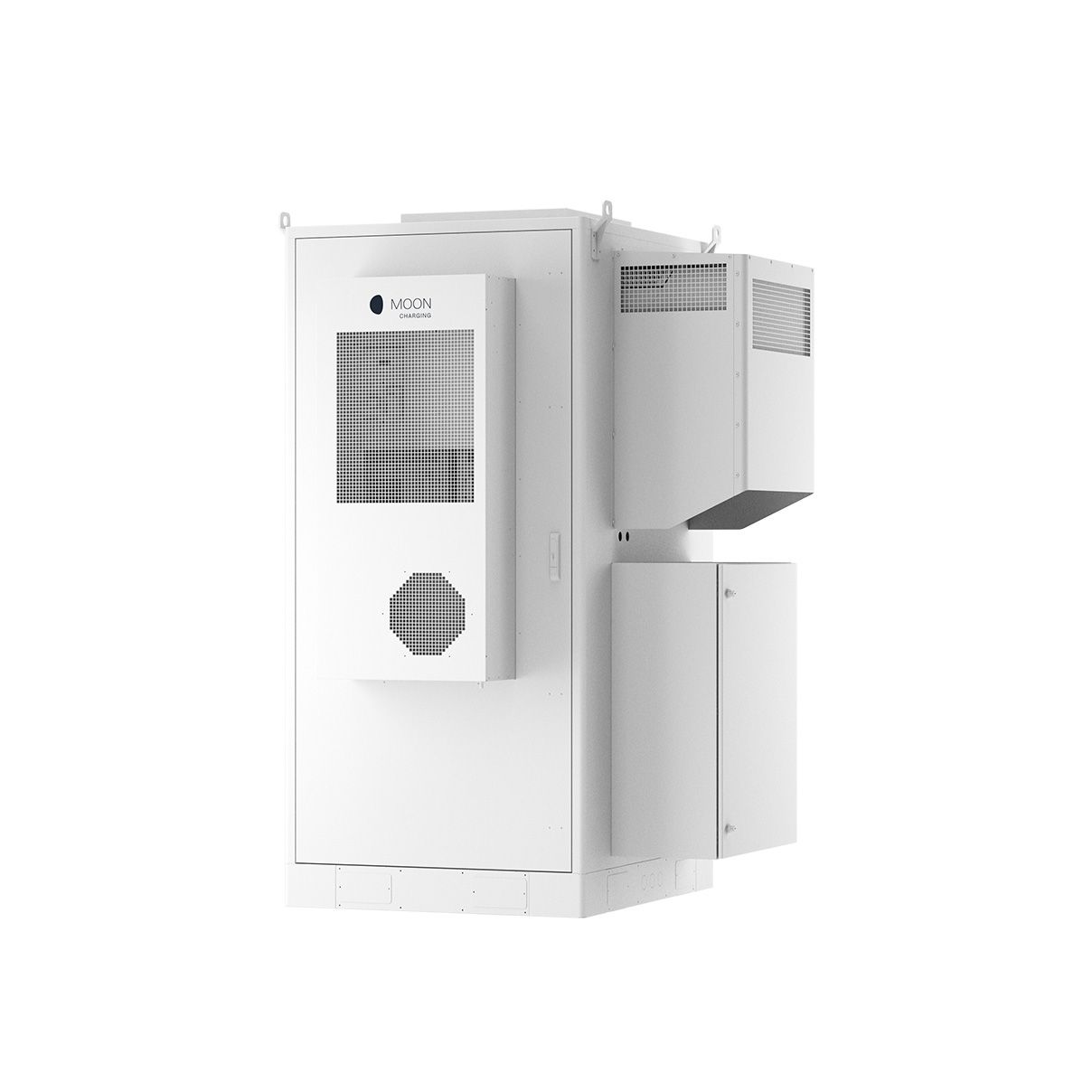

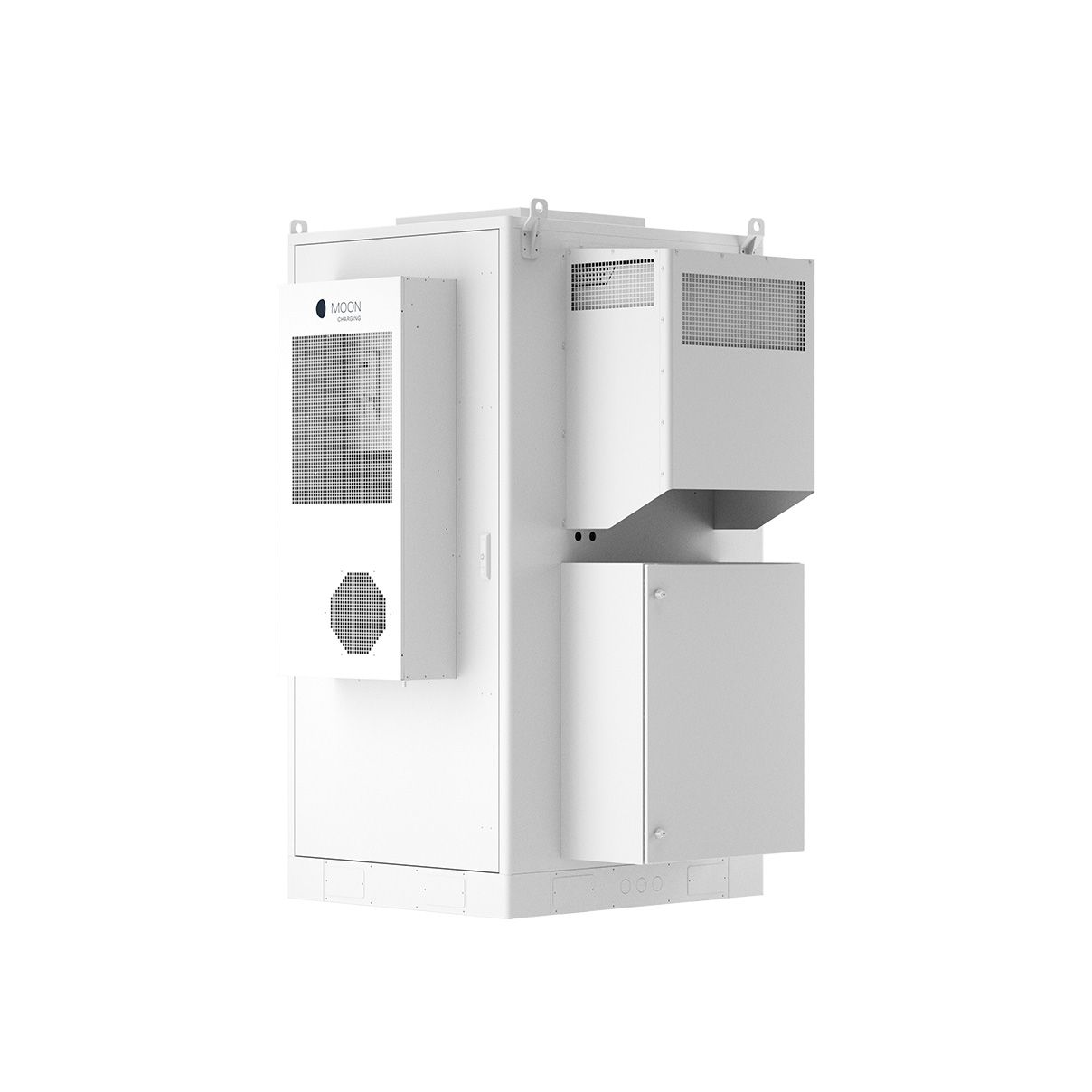

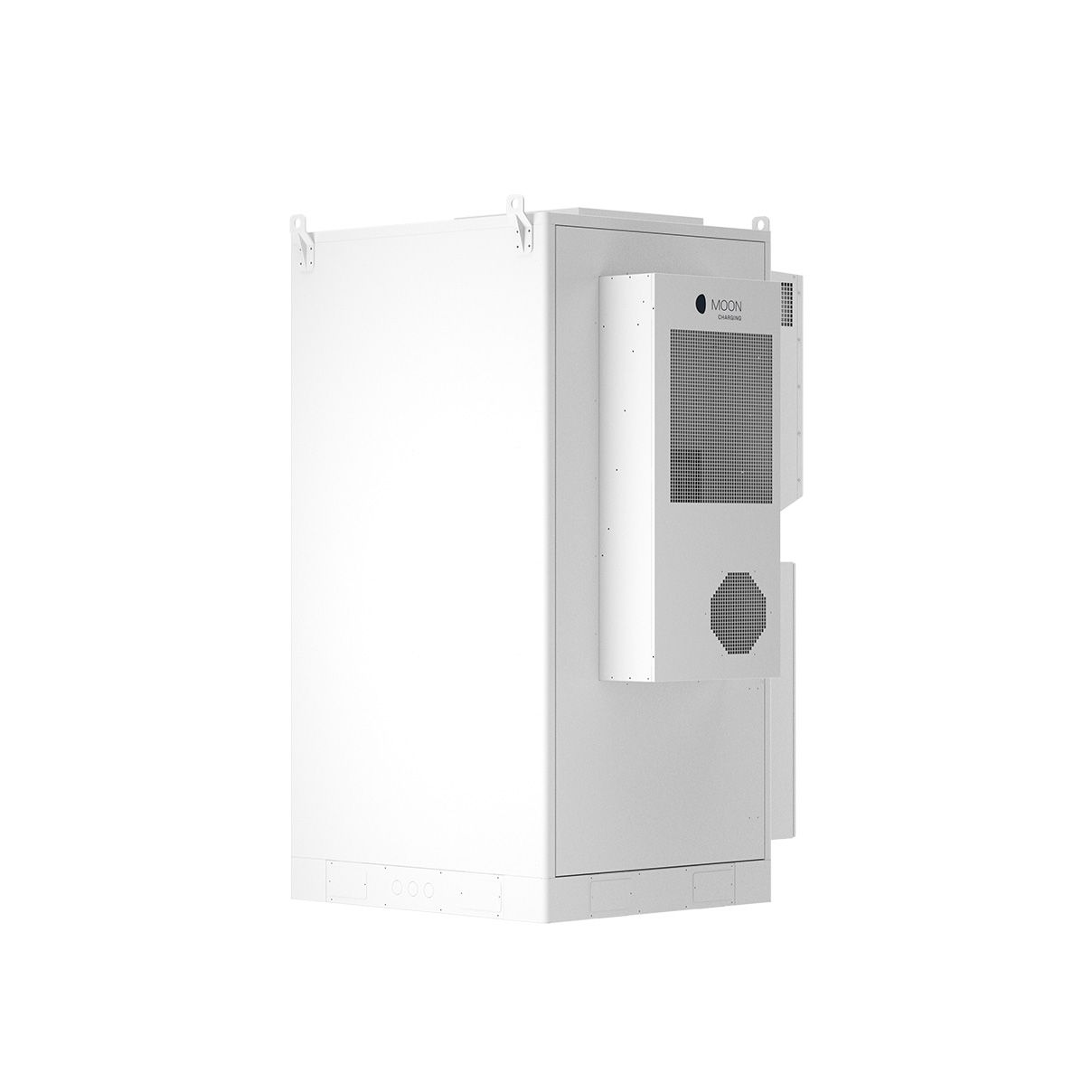

Outdoor - Variant
Uses:
Integrated fire protection and cooling system, flexible for outdoor use
If there is a lack of space indoors, it is ideally suited for outdoor use

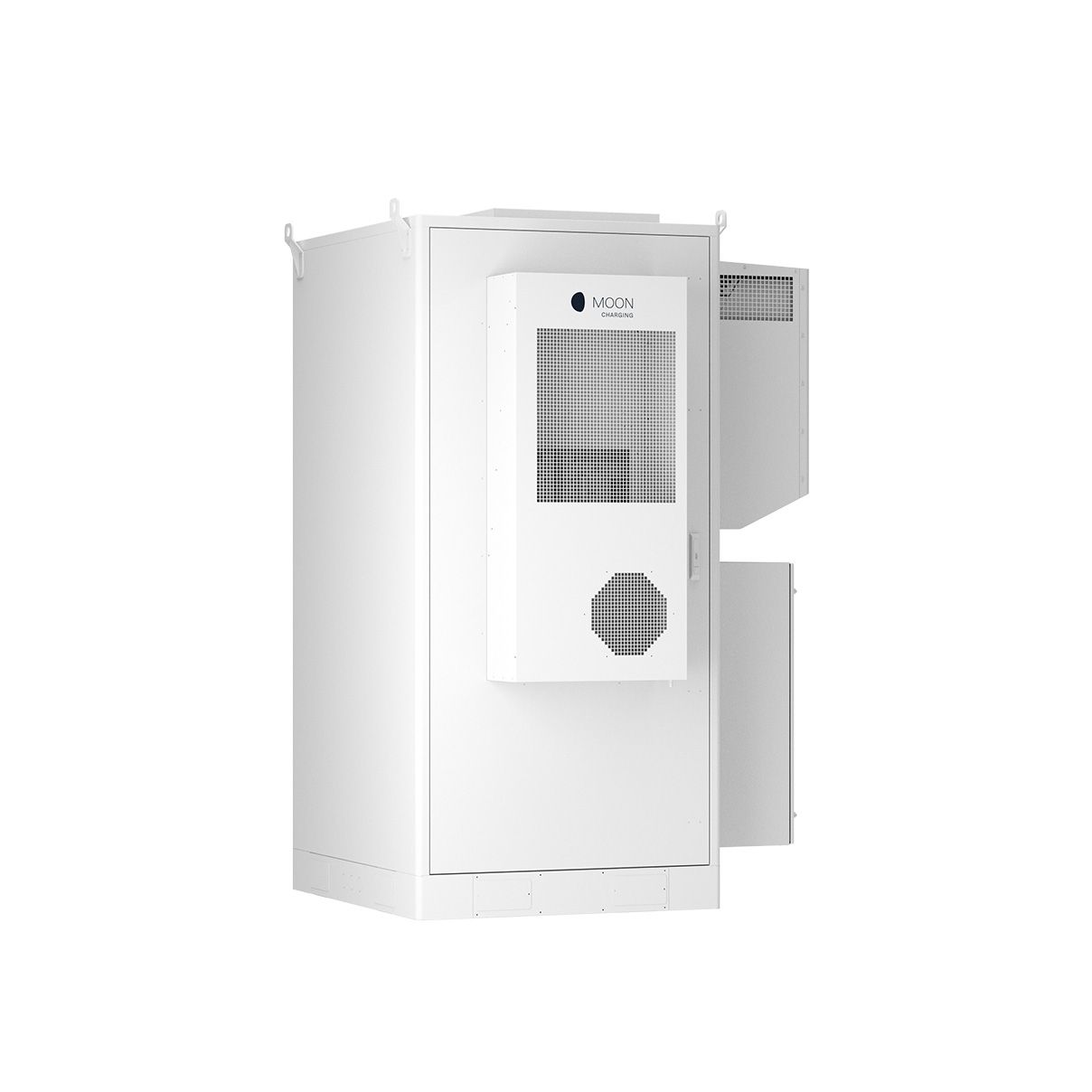

The MOON storage outdoor system has been specially developed for demanding and weather-intensive environments and has an insulated housing that allows it to be used outdoors. With a capacity of 178 kWh up to 1,068 kWh, it has high-quality LFP battery cells that ensure safety, reliability and longevity. The system is prepared as a complete package for the connection of the inverter and can therefore be used in a wide range of applications, e.g. for peak load management, energy cost optimisation and grid stabilisation services.
- All-in-one battery storage system for outdoor use
- Pure grid-connected solution
- Easy and quick installation
- Insulated housing: Protects the system from extreme temperatures and humidity (IP55)
- Integrated safety function with HVAC (heating, ventilation, air conditioning) and fire alarm system
- Cell technology: Robust LFP cells guarantee safety and durability even during intensive use
- Production according to the highest quality and safety standards in the EU
A ready-made System
With the Kaco inverter, it is possible to reduce energy costs through peak load reduction or load management when charging electric vehicles in commercial areas. Thanks to grid-serving functions such as frequency stabilization and reactive power compensation, the inverter actively supports power quality.
In combination with the energy storage system, the inverter can be connected to the optiMOON portal via Modbus TCP and brought into the various modes.

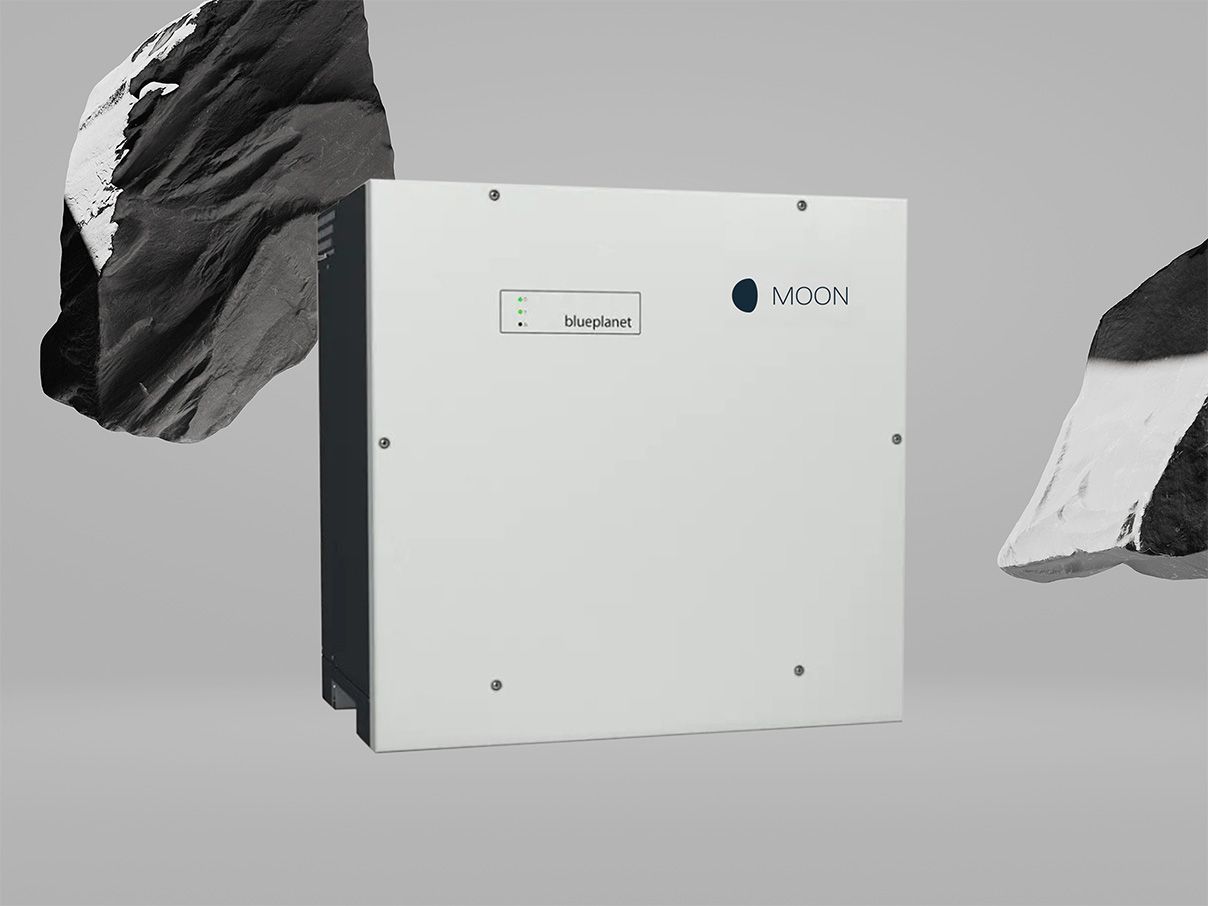

Kaco Inverter
- 98.9% maximum efficiency thanks to silicon technology (SiC)
- Significant power density
- Durability and reliability
- Easy commissioning
- Highest quality ("Made in Germany")

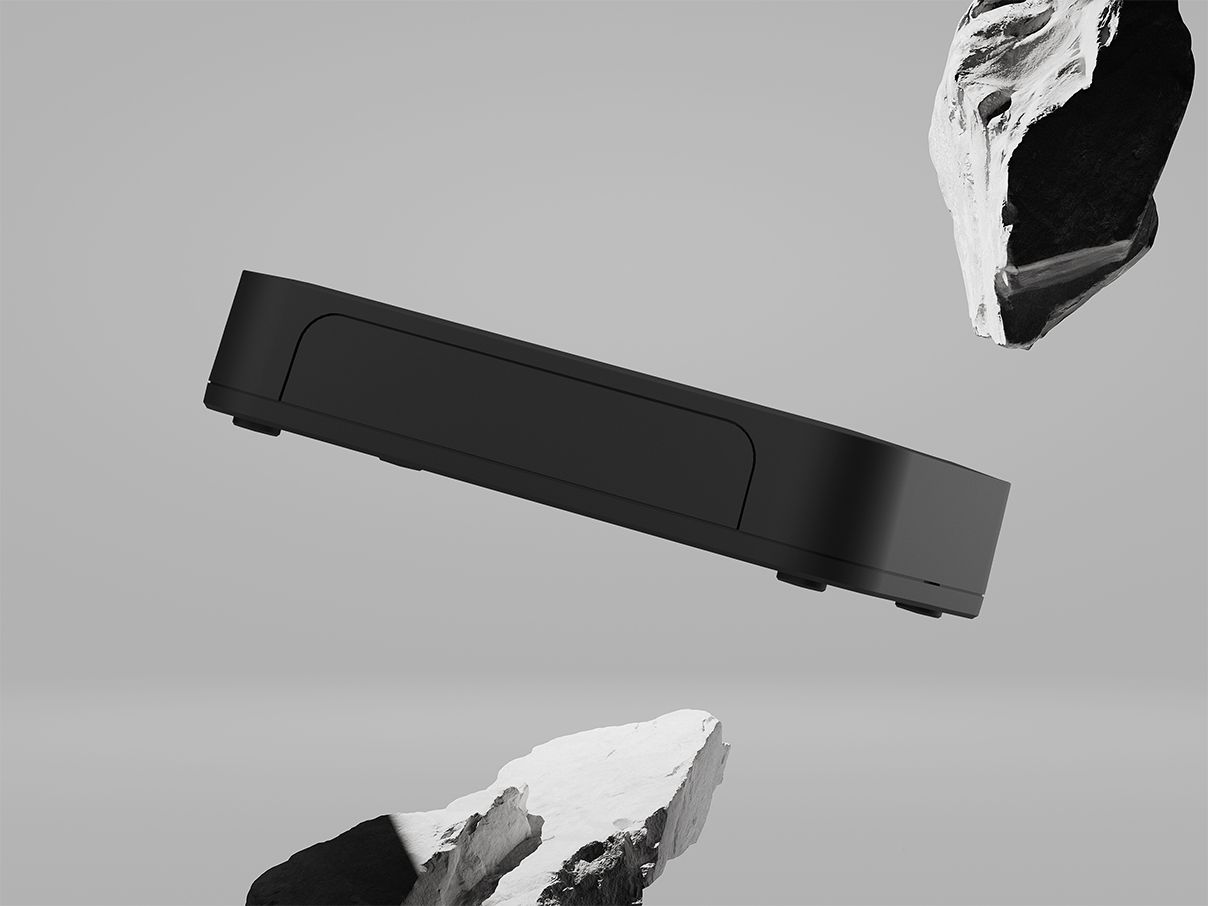

Smart Energy Management System
At the heart of MOON POWER's energy storage offer is our OptiMOON energy management system. It provides a direct overview of all connected batteries around the clock, as well as the ability to intelligently control the flow of energy by planning and configuring convenient and intuitive operating modes, as well as maintaining and controlling battery storage systems.
Battery Management
- Real-time reports for all system data
- Monitoring and analysis
- Highly customizable
Plug & Play Principle
- Worldwide access with OptiMOON software
- Fast commissioning and easy configuration
- Intuitive operation
Integration of other devices
- Photovoltaic system for maximum efficiency taking into account self-consumption scenarios
- AC & DC charging infrastructure
- Heat pump
- Smart Meters
Optimized self-consumption
In combination with an energy management system (EMS), the energy storage system becomes a holistic solution. The simple implementation enables a variety of functions: recording of consumption history, forecasting of consumption and production, individually adaptable control strategies and optimization of self-consumption.
Features such as peak shaving, peak shifting, dynamic power distribution according to priorities and access via app or web interface ensure maximum flexibility. The connection is via Modbus TCP or optionally via Modbus RTU with the EMS optiMOON.
Project realisation
In addition to the product portfolio, a holistic energy concept also includes project implementation, as well as maintenance and service. MOON is the central point of contact here.
Why the battery storage system is the right choice
A battery storage in combination with an energy management system (EMS) is an instrument for controlling and optimizing the energy consumption of your system. It can be used for various components such as charging infrastructure, storage or photovoltaics.

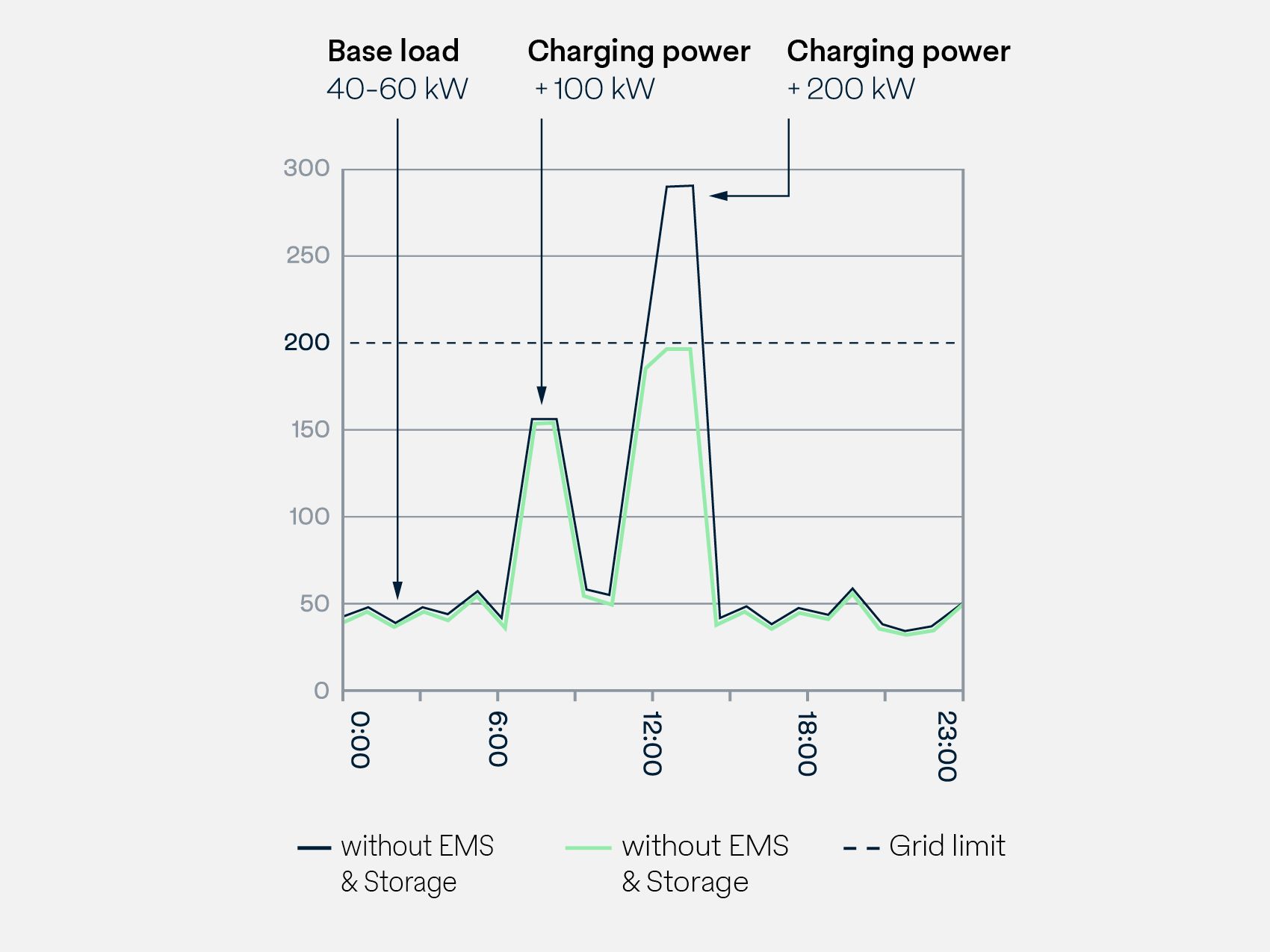

The goal is to avoid peak loads, meet grid limits, and reduce costs. The graphic illustrates the impact of EMS on energy consumption: Without the combination of EMS & storage, significant consumption peaks occur.
Flexibility
Effortlessly scalable thanks to modular design. Modbus TCP ensures seamless communication.
Reliability
The battery is particularly durable and safe thanks to lithium iron phosphate technology.
Quality
Made in Europe to the highest quality and safety standards.
Easy to install
Easy and quick to install, reduces planning and installation costs.
Consumption optimization
The proportion of self-generated energy optimises self-consumption and reduces external energy costs.
Versatility
In combination with MOON EMS, it is ideal for peak load management or grid stabilization.
Usable storage capacity
Nominal AC power
Battery unit performance guarantee
Charging cycles
Technical & Mechanical Data
Performance
Storage capacity: up to 1068 kWh
Nominal AC power: up to 552 kVA
Assembly
Indoors
Communication
Sunspec Modbus Compatible
Performance
Storage capacity = up to 1068 kWh
Nominal AC power: up to 552 kVA
Dimensions in mm
1350 x 620 x 300 mm
Protection
IP55
Assembly
Outdoors
Ambient temperature
-25°C to +55°C
Communication
Sunspec Modbus Compatible
Downloads
FAQs
The TAB Li-Ion C183 energy storage system helps with peak shaving, optimizes energy costs thanks to less dependence on external providers and stabilizes the grid.
- Indoor version: optimized for protected indoor areas with high energy density
- Outdoor version: with insulated housing, suitable for outdoor use in extreme conditions
The main difference is in the housing. The outdoor version has an insulated housing with IP55 protection, which allows it to operate in adverse weather conditions. Capacity and performance are the same for both variants.
Compatibility with MOON energy management enables seamless and flexible integration for a wide range of applications.
The hardware warranty is multi-part:
- TAB e.module H10.2 and S920: 5 years from invoice date
- TAB e.storage HV system configuration Inverter: 5 years from invoice date
- TAB e.storage HV system configuration other components (cables, mechanical parts, consumables and other consumer goods): 2 years from the date of production
In addition, there is a performance guarantee of 10 years or 8,000 cycles (1 cycle: 100% - 0% - 100%) from the date of invoice.
Each basic storage unit provides a usable energy content of 178 kWh. Up to six base memory units can be used per system.
The lithium iron phosphate (LFP) cells offer high safety, long service life and high efficiency. This makes them ideal for industrial and commercial applications.
